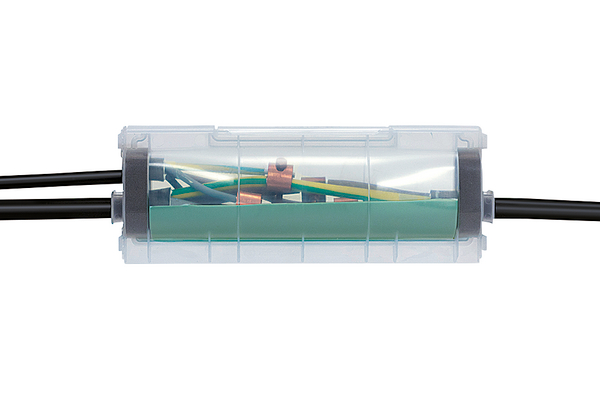

Cast resin joint, Parallel P, 4 x 10mm² to 5 x 35mm², L=420mm, 2240 ml/3069 g, Polyurethane resin (PUR) green
Številka proizvoda 435-00181
| PA-13 / SF-PUR-GN
|
Podrobnosti
- Colour changes from blue to green whilst mixing
- One-piece, impact-proof, transparent moulding shell
- Captive lids
- Compact, optimized dimensions
- Longitudinally and transversely watertight
- Joint can be cast under influence of water
- Immediately ready for use
Zahtevajte svojo individualno ponudbo zdaj
Zahtevajte ponudbo
More products in this product group:
| Application | The parallel branch joint PA is a universal straight-through and branch joint. Depending on the connector, it can be used for single and double branches. They are suitable for jointing on polymeric cables and wires made of PVC, XLPE, PE, EPR and utility cables. Application: In low-voltage electrical networks as well as for signal and communication cables. For power supply lines for outdoor lighting and for cable repairs. In general connections in industrial buildings, power supply underground, outdoors and under water. |
| Colour | Green (GN) |
| Content |
Cast resin PUR 33 In a two-chamber pouch Transparent, one-piece moulding shell Foam seal, protective gloves, emery cloth Cleaning cloth, installation instructions SF-nozzle (two-chamber pouch) |
| Material | Polyurethane resin (PUR) |
| No. of Wires | 4 |
| PART DESCRIPTION | PA-13 / SF-PUR-GN |
| Pack Cont. | 1Set |
| Package Content packed in | set |
| Product Family | RELICON PA-13 with PUR 33 |
| Product Group | Parallel cable branch joints |
| Short Description | PA-13 |
| Type | PA-13 / SF |
| Variant | Cast resin |
Prenos
| Country of Origin | PL |
| Customs Number | 39095090 |
| GTIN-13 / EAN | 4031026631301 |
| Packaging 3 - Height (m) | 0.125m |
| Packaging 3 - Length (m) | 0.39m |
| Packaging 3 - Qty | 1 |
| Packaging 3 - Type | carton |
| Packaging 3 - Volume (m³) | 0.0115m³ |
| Packaging 3 - Weight (kg) | 4.383kg |
| Packaging 3 - Width (m) | 0.235m |
| Packaging 4 - Height (m) | 0.845m |
| Packaging 4 - Length (m) | 1.2m |
| Packaging 4 - Qty | 84 |
| Packaging 4 - Type | pallet |
| Packaging 4 - Volume (m³) | 0.811m³ |
| Packaging 4 - Weight (kg) | 389.172kg |
| Packaging 4 - Width (m) | 0.8m |
| Storage Temperature | +4 °C to +40 °C |
