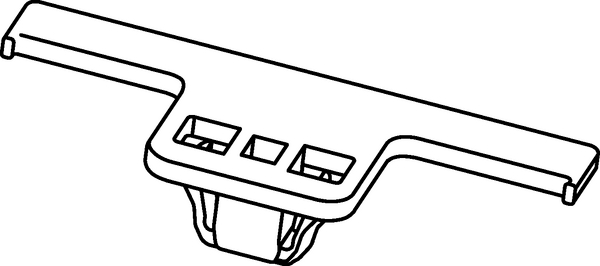

Bundling clip for hole (oval), L=55.0mm, grey, 1000pcs.
Številka proizvoda 151-01625 | BC55AH712-PA66-GY |  Podrobnosti

    Ne pozabite

    Zahtevajte svojo individualno ponudbo zdaj

     Zahtevajte ponudbo
    Downloads
    Colour Dark Grey (DKGY)
    Fixation Method Bundling Clip
    Material Polyamide 6.6 (PA66)
    PART DESCRIPTION BC55AH712-PA66-GY
    Pack Cont. 1000pcs.
    Package Content packed in bag
    Product Family Oval holes
    Product Group Bundling Clips with Arrowhead
    Type BC55AH712
    Bundling Bar Length 55.0mm
    Fixing Hole Shape Oval
    Height (H) 10.3mm
    Length (L) 55mm
    Panel Thickness max. 0.7 - 1.6mm
    Width (W) 22mm
    for Hole ∅ (FH) 7.0 x 12.0 mm
    for Panel Thickness min - max 0.7 - 1.6 mm
    Operating Temperature -40 °C to +85 °C, (+105 °C, 500 h)
    Country of Origin KR
    GTIN-13 / EAN 4031026564715
    ETIM 7.0 Key EC000127
    ETIM 8.0 Key EC000127
    ETIM 9.0 Key EC000127
    UNSPSC Key 39121702
