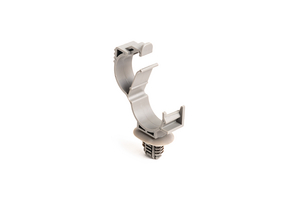

Cable clip for hole (round), T=0.6 - 8.25mm, ∅6.1 - 6.6 mm (hexagonal)/6.1 - 7.0 mm, Dmin=10.0mm, Dmax=14.0mm, nom∅=10.0 - 14.0 mm
Številka proizvoda 151-01166
| LOC10-14FT6LG-PA66HIRHSUV-BK
|
Podrobnosti
- For fixing and bundling convoluted tubes and pipes
- Suitable for nearly every application
Zahtevajte svojo individualno ponudbo zdaj
Zahtevajte ponudbo
More products in this product group:
| Application | These clips offer fast and easy bundling of convuluted tubes and pipes, especially for the automotive industry. |
| Colour | Black (BK) |
| Fixation Method | Fir tree for round holes |
| Key product features | lockable |
| Material | Polyamide 6.6, high impact modified, heat and UV-stabilised (PA66HIRHSUV) |
| PART DESCRIPTION | LOC10-14FT6LG-PA66HIRHSUV-BK |
| Pack Cont. | 2000pcs. |
| Package Content packed in | carton |
| Product Family | LOC-Series |
| Product Group | Fixing Elements for Tubes and Pipes |
| Short Description | Harness Clip, close, round hole 6.35 mm (hexagonal)/6.1 - 6.9 mm, fir tree, high impact modified, heat and UV-stabilised, black |
| Type | LOC10-14FT6LG |
| Bundle Diameter Nom. (ND) | 10.0 - 14.0 mm |
| Bundle Diameter max (metric) | 14.0mm |
| Bundle ∅ | 10.0-14.0mm |
| Bundle ∅ min. | 10.0mm |
| Depth (D) | 12.0mm |
| Height (H) | 57.75mm |
| Length (L) | 34.92mm |
| Panel Thickness max. | 0.6 - 8.25mm |
| Weight/Unit | 0.002889kg |
| Width (W) | 12.0mm |
| for Hole ∅ (FH) | 6.1 - 6.6 mm (hexagonal), 6.1 - 7.0 mm |
| for Panel Thickness min - max | 0.6 - 8.3 mm |
Prenos
| CE Certification | No |
| CSA Certified | No |
| ELV compliant (Article 4 - 2) | YES |
| Flammability | UL 94 HB |
| Halogen-free | Yes |
| Hazardous Goods | No |
| Operating Temperature | -40 °C to +105 °C |
| ROHS compliant | Yes |
| Specifications |
|
| UL Listed (US and Canada) | No |
| UL Listed (US and Canada) | No |
| UL Recognized (US and Canada) | No |
| UL Recognized (US and Canada) | No |
| UV-Stabilised | Yes |
|
|
|
| Country of Origin | MX |
| Customs Number | 39269097 |
| GTIN-13 / EAN | 4031026465081 |
| Packaging 1 - Height (m) | 0.191m |
| Packaging 1 - Length (m) | 0.506m |
| Packaging 1 - Qty | 2000 |
| Packaging 1 - Type | bag |
| Packaging 1 - Volume (m³) | 0.02986m³ |
| Packaging 1 - Weight (kg) | 5.778001kg |
| Packaging 1 - Width (m) | 0.309m |
| Packaging 3 - Height (m) | 0.212725m |
| Packaging 3 - Length (m) | 0.51435m |
| Packaging 3 - Qty | 2000 |
| Packaging 3 - Type | box |
| Packaging 3 - Volume (m³) | 0.0347m³ |
| Packaging 3 - Weight (kg) | 6.398001kg |
| Packaging 3 - Width (m) | 0.3175m |
| Packaging 4 - Height (m) | 1.209m |
| Packaging 4 - Length (m) | 1.2m |
| Packaging 4 - Qty | 40000 |
| Packaging 4 - Type | pallet |
| Packaging 4 - Volume (m³) | 1.161m³ |
| Packaging 4 - Weight (kg) | 148.96kg |
| Packaging 4 - Width (m) | 0.8m |

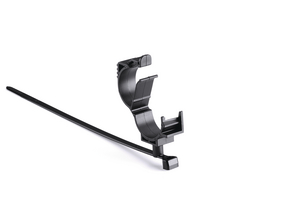

T50SMVCLOC15-19
