Accessory, Ratchet Clamps, black, 320 (RCD-CT-INSERT)
Številka proizvoda 151-02964
| RCD-CT-INSERT-PA666V0-BK
|
Podrobnosti
- Soft inserts (for A - D Series) for an additional level of protection
- Torque support for defined contact pressure
- Use of manual processing Tool EVO possible
- CT-Insert offers low fire hazard
- CT-Insert conform to low smoke generation requirements (UL94 V0)
- CT-Insert offers low evolution of toxic gases and corrosive acids in event of an fire
Zahtevajte svojo individualno ponudbo zdaj
Zahtevajte ponudbo
More products in this product group:

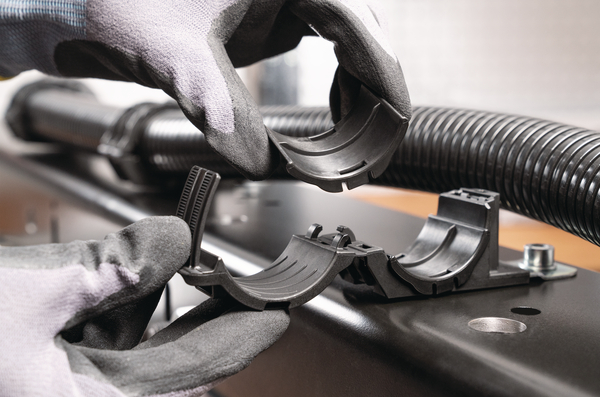

| Application | Soft material inserts snap precisely into the body of the clamp to provide an enhanced level of protection for applications with movement, high vibration or soft cable bundles. An integrated rib on the top of the insert prevents a lateral displacement of the corrugated tube. This provides secure fastenings of a corrugated tube with vertical and horizontal (lateral displacement at e.g. acceleration) alignment. |
| Colour | Black (BK) |
| Description | For convoluted tubes, D-Series |
| Fixation Method | Others |
| Key product features | for convoluted tubes or with rib |
| Material | Polyamide 6.6/6, V0 (PA666V0) |
| PART DESCRIPTION | RCD-CT-INSERT-PA666V0-BK |

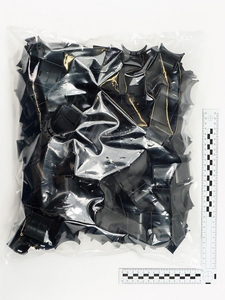

| Pack Cont. | 320 |
| Package Content packed in | bag |
| Product Family | Protection Inserts |
| Product Group | Ratchet P-Clamp Accessories |
| Type | RCD-CT-INSERT |
| Variant | Fixing clamp |
Prenos
|
|
|
| Country of Origin | DE |
| Customs Number | 39269097 |
| GTIN-13 / EAN | 4031026625584 |
| Packaging 1 - Height (m) | 0.15m |
| Packaging 1 - Length (m) | 0.395m |
| Packaging 1 - Qty | 320 |
| Packaging 1 - Type | bag |
| Packaging 1 - Volume (m³) | 0.02666m³ |
| Packaging 1 - Weight (kg) | 1.482255kg |
| Packaging 1 - Width (m) | 0.45m |
| Packaging 3 - Height (m) | 0.368m |
| Packaging 3 - Length (m) | 0.584m |
| Packaging 3 - Qty | 2560 |
| Packaging 3 - Type | box |
| Packaging 3 - Volume (m³) | 0.083m³ |
| Packaging 3 - Weight (kg) | 12.67804kg |
| Packaging 3 - Width (m) | 0.386m |
| Packaging 4 - Height (m) | 1.248m |
| Packaging 4 - Length (m) | 1.2m |
| Packaging 4 - Qty | 30720 |
| Packaging 4 - Type | pallet |
| Packaging 4 - Volume (m³) | 1.198m³ |
| Packaging 4 - Weight (kg) | 173.124kg |
| Packaging 4 - Width (m) | 0.8m |
