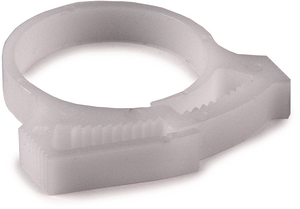

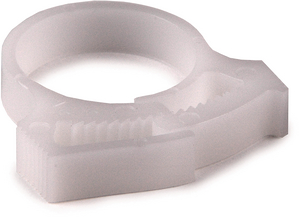

Plastic hose clamp, ∅22.7-24.7mm, natural, 500pcs.
Številka proizvoda 191-10209 | SNP20(E)-POM-NA |  Podrobnosti

SNP - Snapper Hose Clips range.

    • Releasable and reusable plastic hose clamps
    • Self-locking
    • Releasable by giving a lateral movement to the 'head'
    • Installation by hand possible
    • Installation with processing tool for a secure tensioning
    • For higher operating temperatures: Glass Filled PA66
    prikaži več izdelkov
    Ne pozabite

    Zahtevajte svojo individualno ponudbo zdaj

     Zahtevajte ponudbo
    Downloads CAD-Download
    Application Our SNP range can be used as an alternative to metal hose clamps. Snapper can be used in markets as diverse as automotive, agriculture, white goods, venting systems, pumps and hydraulic systems to medical engineering.
    Colour Natural (NA)
    Fixation Method Clamp
    Material Polyacetal (POM)
    PART DESCRIPTION SNP20(E)-POM-NA
    Pack Cont. 500pcs.
    Product Family SNP-Series
    Product Group Snapper hose clips for tubes and harnesses
    Short Description Snapper Hose Clip for Tubes and Harnesses natural
    Type SNP20(E)
    Variant Closed
    Bundle Diameter max (metric) 24.7mm
    Bundle ∅ 22.7-24.7mm
    Bundle ∅ min. 22.7mm
    Height (H) 6.0mm
    Length (L) 34.0mm
    Nominal ∅ 24mm
    Wall (WT) 1.8mm
    Weight/Unit 0.00032kg
    Width (W) 26.0mm
    Width (W) max. 26.0mm
    Width (W) min. 20.0mm
    Width (W2) 6.0mm
    ELV compliant (Article 4 - 2) YES
    Hazardous Goods No
    Operating Temperature -40 °C to +85 °C
    ROHS compliant Yes
    Specifications
    UV-Stabilised No
    Country of Origin FR
    Customs Number 39269097
    GTIN-13 / EAN 5022660317842
    Packaging 1 - Height (m) 0.371m
    Packaging 1 - Length (m) 0.305m
    Packaging 1 - Qty 500
    Packaging 1 - Type bag
    Packaging 1 - Volume (m³) 0.04311m³
    Packaging 1 - Weight (kg) 1.150001kg
    Packaging 1 - Width (m) 0.381m
    Packaging 3 - Height (m) 0.204m
    Packaging 3 - Length (m) 0.591m
    Packaging 3 - Qty 4000
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.048m³
    Packaging 3 - Weight (kg) 9.850008kg
    Packaging 3 - Width (m) 0.398m
    Packaging 4 - Height (m) 1.164m
    Packaging 4 - Length (m) 1.2m
    Packaging 4 - Qty 80000
    Packaging 4 - Type pallet
    Packaging 4 - Volume (m³) 1.117m³
    Packaging 4 - Weight (kg) 218.0kg
    Packaging 4 - Width (m) 0.8m
    ETIM 7.0 Key EC000127
    ETIM 8.0 Key EC000127
    ETIM 9.0 Key EC000127
    UNSPSC Key 39121702
