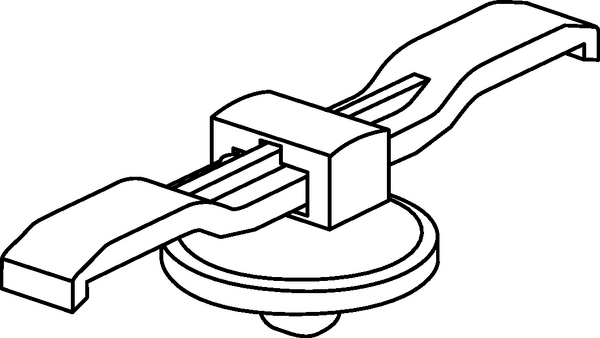

Bundling clip for hole (round), L=54.0mm, green, 500pcs.
Številka proizvoda 156-01238 | TCSFT6.5S-CHA-MD-PA66HS-GN Podrobnosti

Zahtevajte svojo individualno ponudbo zdaj

Colour Green (GN)
Fixation Method arrowhead
Material Polyamide 6.6, heat stabilised (PA66HS)
PART DESCRIPTION TCSFT6.5S-CHA-MD-PA66HS-GN
Pack Cont. 500pcs.
Package Content packed in bag
Product Family With arrowhead, sealed
Product Group Bundling Clips, lateral adjustment
Type TCSFT6.5S-CHA-MD
Bundling Bar Length 54.0mm
Length (L) 54.0mm
Panel Thickness max. 0.6 - 1.8mm
Weight/Unit 0.001398kg
for Hole ∅ (FH) 6.5 - 6.7 mm
for Panel Thickness min - max 0.6 - 1.8 mm
ELV compliant (Article 4 - 2) YES
Hazardous Goods No
ROHS compliant Yes
Specifications
Country of Origin CN
Customs Number 39269097
GTIN-13 / EAN 4031026482538
Packaging 1 - Height (m) 0.06m
Packaging 1 - Length (m) 0.315m
Packaging 1 - Qty 500
Packaging 1 - Type bag
Packaging 1 - Volume (m³) 0.0052
Packaging 1 - Weight (kg) 0.699001kg
Packaging 1 - Width (m) 0.275m
Packaging 3 - Height (m) 0.36m
Packaging 3 - Length (m) 0.59m
Packaging 3 - Qty 8000
Packaging 3 - Type box
Packaging 3 - Volume (m³) 0.0828
Packaging 3 - Weight (kg) 11.839016kg
Packaging 3 - Width (m) 0.39m
Packaging 4 - Height (m) 1.224m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 96000
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 1.175
Packaging 4 - Weight (kg) 163.068kg
Packaging 4 - Width (m) 0.8m
ETIM 7.0 Key EC000127
ETIM 8.0 Key EC000127
ETIM 9.0 Key EC000127
UNSPSC Key 39121702
