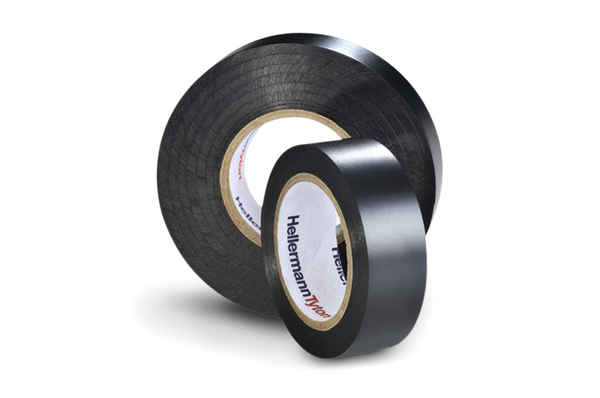

Premium Vinyl Electrical Tape 38 mm x 20 m black
Številka proizvoda 710-10705
| HTAPE-FLEX2000+38x20-PVC-BK
|
Podrobnosti
- All-weather, highly flexible, professional grade, self-adhesive vinyl electrical tape with higher thickness for more mechanical and electrical protection
- Excellent performance and durability over wide temperature range from -18 °C to +105 °C according to CSA C22.2
- Pressure sensitive and aggressive high quality rubber based adhesive
- Performs continuously at low temperature environment
- Flame retardant according to UL 510 Standard
- Excellent resistance to abrasion, moisture, chemicals, corrosion and UV exposure
- Primary electrical insulation for all wire and cable splices up to 1 kV
Zahtevajte svojo individualno ponudbo zdaj
Zahtevajte ponudbo
More products in this product group:
| Application | Primary electrical insulation for all wire and cable splices up to 1 kV. Protective jacketing for low, high, and medium voltage splices. Harnessing of wires and cables. Used for indoor and outdoor applications. |
| Colour | Black (BK) |
| Material | Polyvinylchloride (PVC) |
| PART DESCRIPTION | HTAPE-FLEX2000+38x20-PVC-BK |
| Pack Cont. | 20m |
| Package Content packed in | reel |
| Product Family | HelaTape Flex 2000+ |
| Product Group | Vinyl Electrical Tapes – Premium Heavy Duty Vinyl Electrical Tape |
| Short Description | Premium Vinyl Electrical Tape 38 mm x 20 m black |
| Type | HTAPE-FLEX2000+38x20 |
Prenos
| Adhesion to Backing | 2.4N/10 mm |
| Adhesion to Steel | 3.0N/10 mm |
| Breaking Strength | 40N/10 mm |
| Dielectric Strength | 40kV/mm |
| ELV compliant (Article 4 - 2) | YES |
| Elongation at break | 300 % |
| Hazardous Goods | No |
| Insulating (Yes/No) | Yes |
| Operating Temperature | -18 °C to +105 °C |
| ROHS compliant | Yes |
| Self extinguishing | Yes |
| Shelf Life | 5 years |
| Specifications |
|
| Specifications | UL 510 |
| Suitable for high voltage (Yes/No) | No |
| Tensile Strength | 45.5N/mm² |
| UL OCD link | Link |
| UL-File Number | E490183 |
| UV-Stabilised | Yes |
|
|
|
| Country of Origin | CN |
| Customs Number | 39191012 |
| GTIN-13 / EAN | 4031026550497 |
| Packaging 1 - Height (m) | 0.038m |
| Packaging 1 - Length (m) | 0.088m |
| Packaging 1 - Qty | 1 |
| Packaging 1 - Type | reel |
| Packaging 1 - Volume (m³) | 0.00029m³ |
| Packaging 1 - Weight (kg) | 0.209kg |
| Packaging 1 - Width (m) | 0.088m |
| Packaging 3 - Height (m) | 0.21m |
| Packaging 3 - Length (m) | 0.36m |
| Packaging 3 - Qty | 40 |
| Packaging 3 - Type | carton |
| Packaging 3 - Volume (m³) | 0.014m³ |
| Packaging 3 - Weight (kg) | 8.876kg |
| Packaging 3 - Width (m) | 0.185m |
| Packaging 4 - Height (m) | 0.984m |
| Packaging 4 - Length (m) | 1.2m |
| Packaging 4 - Qty | 1920 |
| Packaging 4 - Type | pallet |
| Packaging 4 - Volume (m³) | 0.945m³ |
| Packaging 4 - Weight (kg) | 447.048kg |
| Packaging 4 - Width (m) | 0.8m |
| Storage Temperature | +23 °C |
| Storage conditions | 65% relative humidity. |
