Gel cable joint, 9-20mm, 3 x 6mm² to 5 x 6mm², L=220mm, Polypropylene (PP)/Silicone (SI), green
Številka proizvoda 435-00658 | Relifix V506Y-PP/SI-GN |  Podrobnosti

Gel cable joint Relifix V 506Y.

    • Moulding shell: One piece, coloured, re-openable, impact-proof, flame retardant
    • Filled with Relicon non-toxic gel, high dielectric strength
    • No mixing, easy to install
    • UV, ageing and weather resistant
    • Unlimited shelf life
    • With connector, ready for assemble
    • Tested according to EN 50393 (corresponds to DIN VDE 0278-393)
    • IPX8 tested
    prikaži več izdelkov
    Ne pozabite

    Zahtevajte svojo individualno ponudbo zdaj

     Zahtevajte ponudbo
    Downloads
    Application RELICON Relifix gel technology offers several advantages. It is quick and easy to install. The moulding shells are provided with a film hinge and are made from thick-walled, tough and impact resistant polypropylene (PP). The Relicon gel in the shells insulates and seals the complete connection as the joint is closed. Depending on the connector type, Relifix can be used as a universal straight-through or branch joint. It is suitable for jointing on polymeric cables and wires made of PVC, XLPE, PE, EPR etc. Application: In low-voltage electrical networks as straight-through and/or branch joint, e.g. underground, submerged, outdoor, indoor and wiring ducts.
    Colour Green (GN)

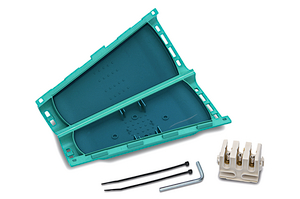

    Content Moulding shells filled with RELICON gel
    Installation instructions
    Connector
    Cable ties
    Allen key
    Material Polypropylene (PP), Silicone (SI)
    No. of Wires 5
    PART DESCRIPTION Relifix V506Y-PP/SI-GN
    Pack Cont. 1Set
    Package Content packed in box
    Product Family RELICON Relifix VY
    Product Group Straight-through gel cable joints with connectors
    Short Description Gel cable joint 3x6 - 5x6, 3x2,5 - 5x6
    Type Relifix V506Y
    Variant Gel
    Banch Cable min 3 x 2.5mm²
    Branch Cable max 5 x 6mm²
    Cable Diameter Branch Cable 9-20mm
    Cable Diameter Main Cable 9-20mm
    Height (H) 53mm
    Length (L) 220mm
    Main Cabel max 5 x 6mm²
    Main Cable min 3 x 6mm²
    Weight/Unit 0.76kg
    Width (W) 110mm
    ELV compliant (Article 4 - 2) YES
    Hazardous Goods No
    Operating Temperature -20 °C to +90 °C
    ROHS compliant Yes
    Shelf Life Unlimited
    Specifications
    Thermal Conductivity (max.) 0.20W/mK
    Thermal Conductivity (min.) 0.20W/mK
    Country of Origin IT
    Customs Number 85369010
    GTIN-13 / EAN 4250596414644
    Packaging 1 - Height (m) 0.06m
    Packaging 1 - Length (m) 0.23m
    Packaging 1 - Qty 1
    Packaging 1 - Type pack
    Packaging 1 - Volume (m³) 0.00166m³
    Packaging 1 - Weight (kg) 0.782kg
    Packaging 1 - Width (m) 0.12m
    ETIM 7.0 Key EC001170
    ETIM 8.0 Key EC001170
    ETIM 9.0 Key EC001170
