Gel cable joint, 8.0-10mm, 6 x 0.35mm² to 6 x 0.5mm², L=38mm, Polyamide 6.6 V0 (PA66V0)/Silicone (SI), black
Številka proizvoda 435-01654
| Relilight V41U1-PA66V0/SI-BK
|
Podrobnosti
- Two- part, black moulding shells
- Flame-retardant shell moulds according to UL94 V0
- Safety class IP68

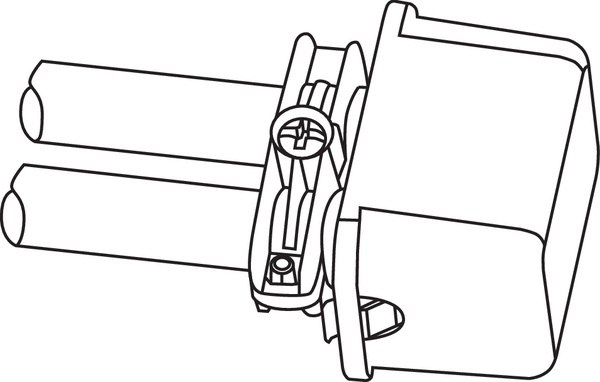

- Strain relief integrated in the shell moulds
- Voltage class 250V
- Good insulating properties through the use of RELICON gel
- Non-toxic gel
- Reopenable
- Easy to install
- UV-resistant
- Resistant to ageing
- Weather-resistant
- Temperature-resistant from -30°C to 130°C
- Unlimited storage life
- Certified according to DIN EN 60998-2-1:2004
- Incl. connector block
Zahtevajte svojo individualno ponudbo zdaj
Zahtevajte ponudbo
More products in this product group:
| Application | Relilight gel cable joints are designed for light installations, LED lighting as well. They are tested according to EN 60998-2-1: 2004 and offer IP68 protection class. The moulding shells are also flame retardant. Depending on the connector type, Relilight can be used either for straight-through or as branch joints. They are suitable for jointing on polymeric cables and wires made of PVC, XLPE, PE, EPR etc. The silicone based gel in the Relilight cable joints not only provides excellent insulation but also a simple, effortless installation. Application: In low-voltage electrical networks as straight-through or branch joints, e.g. for outdoor light installations, like garden lightning, underground, submerged, outdoor, indoor and in wiring ducts. |
| Colour | Black (BK) |
| Content |

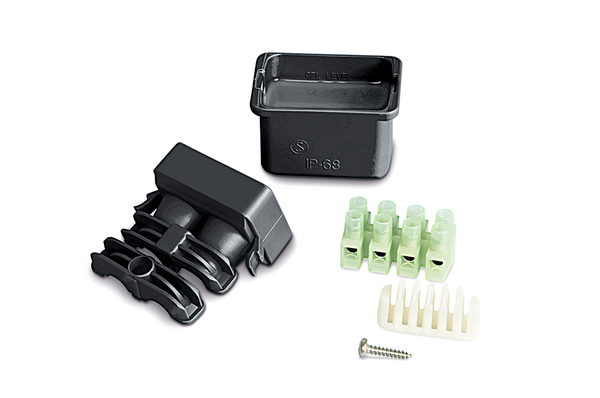

Gel shell filled with RELICON gel Adapter for strain relief Installation instruction Connector block 4 x 0,5 mm² to 4 x 1 mm² Core spacer 6 x 0,35 mm² - 6 x 0,5 mm² Screws |
| Material | Polyamide 6.6 V0 (PA66V0), Silicone (SI) |
| No. of Wires | 6 |
| PART DESCRIPTION | Relilight V41U1-PA66V0/SI-BK |
| Pack Cont. | 1Bag |
| Package Content packed in | box |
| Product Family | RELICON Relilight V 41 U1 |
| Product Group | Straight-through and branch gel cable joints with connectors |
| Short Description | Gel cable joint 4 x 0,5 - 4 x 1, Abz. 6x0,35 - 6x0,50 |
| Type | Relilight V41U1 |
| Variant | Gel |
| Voltage range | 250V |
