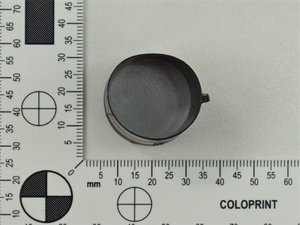

Bottle Shapes, VG style
Številka proizvoda 401-52885 | 152-42-GWM250-PO-X-BK |  Podrobnosti

150 Series boot recovered onto a connectors.

    • Straight plug-and-socket connector terminal casing
    • Protects against environmental stresses for circular plug connectors
    • Inside lip for reinforced stress relief
    • Special 199-4-G fitting for audio plugs has external ribs for improved grip
    Ne pozabite

    Zahtevajte svojo individualno ponudbo zdaj

     Zahtevajte ponudbo
    Downloads
    Application Heat Shrinkable moulded shapes for use in Electrical and Electronic Cable Harness Applications.
    Colour Black (BK)
    Material Polyolefin, cross-linked (PO-X)
    PART DESCRIPTION 152-42-GWM250-PO-X-BK
    Pack Cont. 1pc.
    Package Content packed in pcs.
    Product Family Helashrink 150 Series, with rib
    Product Group Bottle Shapes, VG style
    Shrink Ratio 4:1
    Type 152-42-GWM250
    Variant For plug
    Flexibility semi rigid
    HW ± 20 % 1.6mm
    JW ± 20 % 0.5mm
    JW ± 30 % 1.0mm
    P ± 10 % 38mm
    R nom. 21mm
    R ± 10 % 21mm
    S nom. 10mm
    T ± 20 % 1mm
    V ± 10 % 3mm
    Weight/Unit 0.004kg
    Wire Size Range (mm²) 6.0-23.0mm
    ∅H max. b 10.5mm
    ∅H min. a 24mm
    ∅J max. b 6mm
    ∅J min. a 24mm
    Adhesive WM250
    Dielectric Strength 14kV/mm
    Dielectric Strength test method ASTM D2671
    ELV compliant (Article 4 - 2) YES
    Flammability ASTM D635
    Hazardous Goods No
    Min. Shrink Temperature - °C +135 °C
    Operating Temperature -70 °C to +150 °C
    ROHS compliant Yes
    Shelf Life 5 years
    Specifications
    Country of Origin GB
    Customs Number 39174000
    GTIN-13 / EAN 5022660430794
    Packaging 1 - Height (m) 0.02m
    Packaging 1 - Length (m) 0.18m
    Packaging 1 - Qty 1

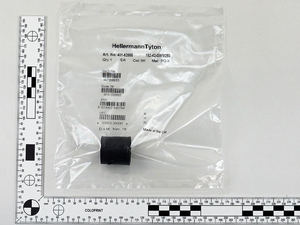

    Packaging 1 - Type bag
    Packaging 1 - Volume (m³) 0.00058m³
    Packaging 1 - Weight (kg) 0.004001kg
    Packaging 1 - Width (m) 0.16m
    ETIM 7.0 Key EC002464
    ETIM 8.0 Key EC002464
    ETIM 9.0 Key EC002464
    UNSPSC Key 39121721
