Label, silver, laser print, 33.87x63.50mm, 500pcs.
Številka proizvoda 594-51103 | TAG170LA4-1103-SR | Podrobnosti

Matt-silver rating labels for component marking
For use on flat and smooth surfaces
Simple and efficient label design and printing with TagPrint Pro labelling software
Templates available from www.HellermannTyton.com/templates for those wishing to use MS Word
Clear protective box to ensures labels stay as good as new

Zahtevajte svojo individualno ponudbo zdaj

Zahtevajte ponudbo

Poiščite distributerja v svoji bližini

More products in this product group:

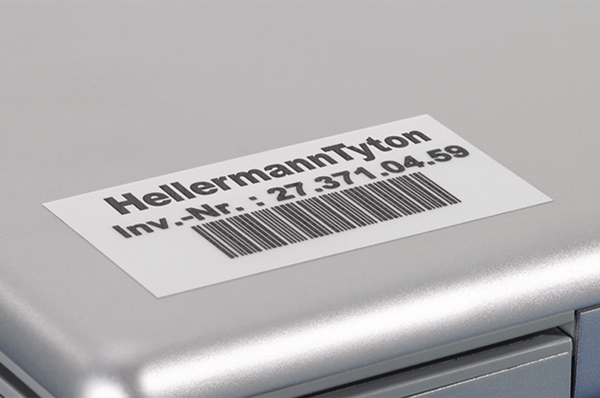

Application	These silver labels come in various sizes and are ideal for the identification of industrial assets. The labels can be easily printed with office laser printers. All label templates are already stored in HellermannTyton’s TagPrint Pro software so label design including barcodes or logos has been made easy even with office printers.
Application Method	The functionality and durability of the labels can be negatively affected if improperly processed or applied. All surfaces to be bonded must be clean, dry as well as free from dust and grease. Avoid touching the adhesive surface of the label as this could impair the application performance.
Chem. Material Properties	Excellent resistance against water, alcohol, most oils, lubricants, fuels, aliphatic solvents, weak acid, salts, alkalis and UV light.
Colour	Silver (SR)
Colour Marking Field	Silver (SR)
Material	Type 1103, Polyester, silver (1103)
PART DESCRIPTION	TAG170LA4-1103-SR
Pack Cont.	500pcs.
Package Content packed in	pack
Paper Format	A4
Product Family	Helatag 1103 (Silver)
Product Group	Type label identification, laser printer
Self adhesive (Yes/No)	Yes
Short Description	Type label identification, laser 63.5x33.87 mm silver
Type	TAG170LA4

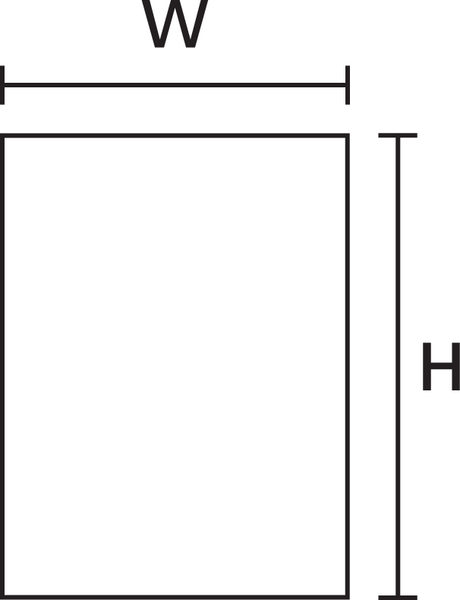

HR	63.50mm
Height (H)	33.87mm
Print Method	laser print
Print Method (Alternative)	laser beam print
Thickness of Adhesive (TA) nom.	24µm
Thickness of Foil	53
Thickness of foil test method	ISO 534
VR	33.87mm
Weight/Unit	0.000826kg
Width (W)	63.50mm
Width of Liner (WL)	210.00mm

Adhesive	Acrylic
Curing Temperature	from 0 °C
ELV compliant (Article 4 - 2)	YES
Halogen-free	Yes
Hazardous Goods	No
Initial tack	13N
Initial tack	FINAT FTM 9
Operating Temperature	-40 °C to +150 °C
Pre-Printed	No
ROHS compliant	Yes
Shear strength	1000min
Shear strength test method	FINAT FTM 8
Shelf Life	Minimum 1 year upon receipt / maximal 4 years after production date.
Specifications
UL Recognized (US and Canada)	Yes

Country of Origin	DE
Customs Number	39199080
GTIN-13 / EAN	4031026294650
Labels per Row	3pcs.
Labels per Sheet	24pcs.
Packaging 1 - Height (m)	0.017m
Packaging 1 - Length (m)	0.315m
Packaging 1 - Qty	500
Packaging 1 - Type	bag
Packaging 1 - Volume (m³)	0.00127m³
Packaging 1 - Weight (kg)	0.413001kg
Packaging 1 - Width (m)	0.238m
Packaging 3 - Height (m)	0.21m
Packaging 3 - Length (m)	0.32m
Packaging 3 - Qty	6000
Packaging 3 - Type	carton
Packaging 3 - Volume (m³)	0.0168m³
Packaging 3 - Weight (kg)	5.456kg
Packaging 3 - Width (m)	0.25m
Packaging 4 - Height (m)	1.194m
Packaging 4 - Length (m)	1.2m
Packaging 4 - Qty	270000
Packaging 4 - Type	pallet
Packaging 4 - Volume (m³)	1.146m³
Packaging 4 - Weight (kg)	266.52kg
Packaging 4 - Width (m)	0.8m
Sheets per Pack	21pcs.
Storage Temperature	+15 °C to +25 °C
Storage conditions	45% ±5% relative humidity., The storage in the original packaging is recommended., Please avoid warehousing under impacts such as high humidity, heat and coldness., Must be stored in a dark place.
