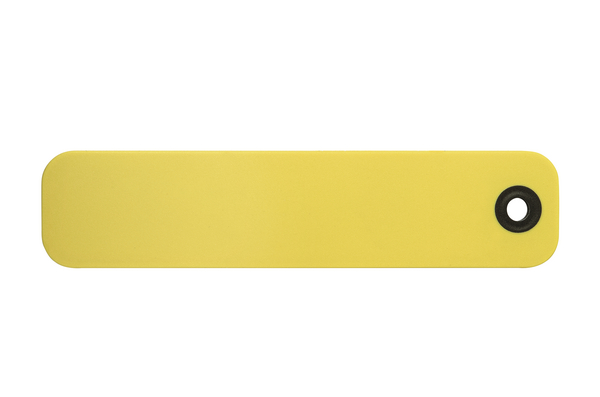

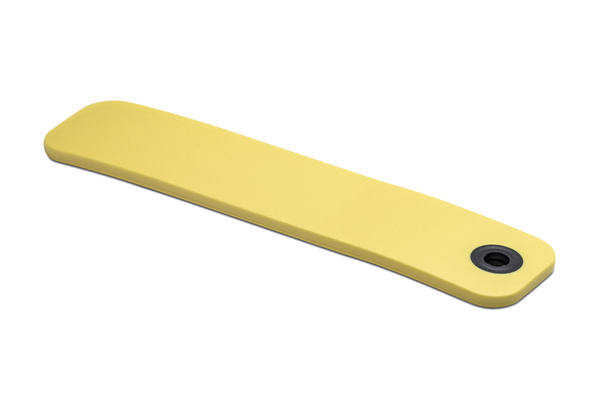

RFID transponder, 860-960 MHz (UHF), bolt-on, 110.00x25.00mm, yellow, 250pcs.
Številka proizvoda 556-00850
| RFID FLEXTAG 110x25-TPU-YE
|
Podrobnosti
- Identification element with integrated RFID transponder according to international standards
- Rewritable memory
- Resilient and flexible
- Mounting hole / holes for attachment with bolts, screws, nails, rivets or cable ties
- Clear identification of objects and / or locations through unique numbering systems
- Faster, more secure and error-free data management
- Robust and durable
- Relatively large range
- Bulk detection of up to 500 transponders per second is possible thanks to the UHF frequency (depending on the infrastructure)
![](https://www.hellermanntyton.com/shared/speclogos/99593_All_Languages.jpg)
![](https://www.hellermanntyton.com/shared/speclogos/99595_All_Languages.jpg)
Zahtevajte svojo individualno ponudbo zdaj
Zahtevajte ponudbo
More products in this product group:

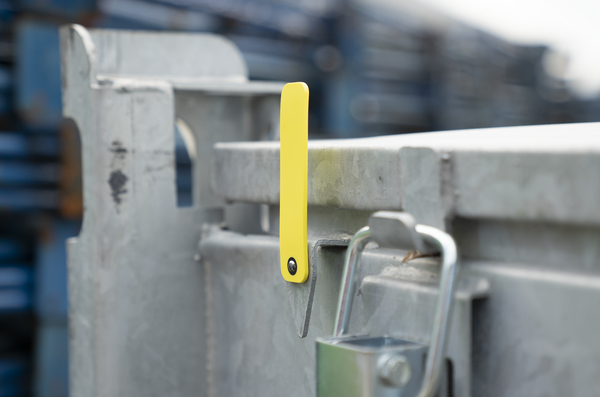

Application | The universally applicable identification elements of the RFID FlexLine series are ideally suited for the identification of objects and places inside and outside due to its robust and flexible design. Because of its flexibility, it adapts to its subsurface and can therefore also be attached to curved surfaces such as pipes, buckets or tree trunks. Identification elements of the RFID FlexLine are ideally suited for the clear identification of pallets or containers. The robust design even allows it to withstand washing processes, so that this identification elements are suitable for industrial cleaning (uniforms, work clothing, PPE, hotel or hospital linen, medical equipment, etc.). Another application would be the labelling of disposal bins such as garbage cans, garbage cans and garbage container. |
Colour | Yellow (YE) |
Fixation Method | bolt-on |
Material | Thermoplastic Polyurethane (TPU) |
PART DESCRIPTION | RFID FLEXTAG 110x25-TPU-YE |
Pack Cont. | 250pcs. |
Package Content packed in | pack |
Product Family | FlexLine – Ultra high frequency (UHF), bolt-on, blank |
Product Group | Hard tags with RFID transponder |
Short Description | RFID identification element 110x25 mm, 860-960 MHz (UHF), TPU, yellow |
Type | RFID FLEXTAG 110x25 |
CE Certification | Yes |
Data Retention | 10 years |
ELV compliant (Article 4 - 2) | YES |
Halogen-free | Yes |
Hazardous Goods | No |
IP-Rating | IP68 |
Operating Temperature | -40 °C to +70 °C |
ROHS compliant | Yes |
Radio protocol | ISO 18000-6C, EPC Gen2 |
Resistance to | Water: 100h (at room temperature), Salt mist: 100h (at room temperature), Petroleum: 100h (at room temperature), Mineral and vegetable oils: 100h (at room temperature) |
Specifications |
![]() ![]() ![]() |
Specifications | IEC 62262: IK06, IEC 68-2-29, IEC 68-2-6 |
Tamper proof | No |
Type of RFID chip | Alien Higgs 3 |
Write endurance | 100000 cycles |
Country of Origin | MY |
Customs Number | 85235910 |
GTIN-13 / EAN | 4031026661865 |
Packaging 1 - Height (m) | 0.065m |
Packaging 1 - Length (m) | 0.235m |
Packaging 1 - Qty | 250 |
Packaging 1 - Type | carton |
Packaging 1 - Volume (m³) | 0.0029m³ |
Packaging 1 - Weight (kg) | 5.0kg |
Packaging 1 - Width (m) | 0.19m |
Packaging 3 - Height (m) | 0.156m |
Packaging 3 - Length (m) | 0.403m |
Packaging 3 - Qty | 1000 |
Packaging 3 - Type | carton |
Packaging 3 - Volume (m³) | 0.0155m³ |
Packaging 3 - Weight (kg) | 20.5kg |
Packaging 3 - Width (m) | 0.247m |
Packaging 4 - Height (m) | 1.236m |
Packaging 4 - Length (m) | 1.2m |
Packaging 4 - Qty | 42000 |
Packaging 4 - Type | pallet |
Packaging 4 - Volume (m³) | 1.187m³ |
Packaging 4 - Weight (kg) | 882.0kg |
Packaging 4 - Width (m) | 0.8m |
Storage Temperature | -40 °C to +70 °C |
