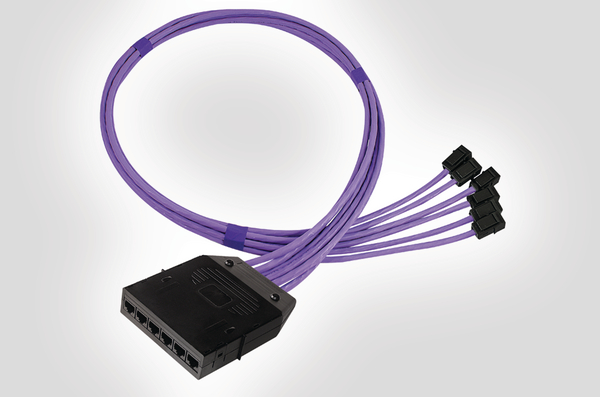

RapidNet 6 Port Category 6 Cassette to Keystone Jack
Številka proizvoda 859-38223
| RN06UC6-CAGTBK-10.0M
|
Podrobnosti
- Exceeds Category 6 performance standards
- 24 Ports in 1U
- Factory pre-terminated and tested
- Reduce installation times by up to 85%
- Ideal solution for ‘to the desk’ installations
- Compatible with angled Euro and LJ6C adaptor modules
- 5* different colour options
- Backward compatible with Category 5e, Category 5 and voice
Zahtevajte svojo individualno ponudbo zdaj
Zahtevajte ponudbo
More products in this product group:
| Colour | Violet (VT) |
| Connector Colour | Black (BK) |
| Connector Type | RJ45 UTP |
| Description | The RapidNet Category 6 UTP Cassette to Keystone Jacks is pre-terminated with 6 Category 6 UTP keystone jacks. The RapidNet 6 port cassette presents 6 RJ45 ports in one cassette, with 4 cassettes fitting into a standard RapidNet Patch Panel. The cassettes simply push into the panel, snapping in with a releasable clip and a fully loaded panel presents 24 ports in 1U of space. The 6 Port RapidNet Cassette to Keystone Jack option gives the installers and end users added flexibility at the desk or ‘work area’ end. The Keystone Jack can be easily clipped into a selection of modules that can be fitted into floor boxes or wall mounted in face plates. The Category 6 UTP keystone jacks are available in 5 colours (Black (BK), Blue (BL), Green (GN), Red (RD) and Yellow (YL)). |
| PART DESCRIPTION | RN06UC6-CAGTBK-10.0M |
| Pack Cont. | 10.0m |
| Port count | 6 |
| Product Family | Cassette to Keystone Jack |
| Product Group | RapidNet 6 Port Category 6 |
| Short Description | RapidNet 6 Port Category 6 Cassette to Keystone Jack |
| Technical Description | The RapidNet Category 6 UTP solution is designed using UTP cable loosely bundled in a 5 around 1 configuration which maintains performance and reduces alien crosstalk. The cassette is manufactured with a simple push clip mechanism and polarising pips to prevent incorrect insertion. Rear cable management is provided within the RapidNet Cassette with integral strain relief which provides protection to all the cables and their terminations. All RapidNet terminations are tested to exceed the latest published versions of ISO/IEC 11801, BS/EN50173 and ANSI/TIA/EIA 568 – C Category 6A standards. All RapidNet Category 6 cables are made with LS0H material, complying with the latest European fire ratings. NB: Part Numbers given are for 10m looms in the standard 5 colours Black(BK), Blue(BL), Green(GN), Red(RD) and Yellow(YE). Lengths are available from 10m to 90m in 0.5m increments. *An additional 7 colour options are available on request, contact HellermannTyton Sales Desk for further details. |
| Type | RN06UC6-CAGTBK-10.0M |
