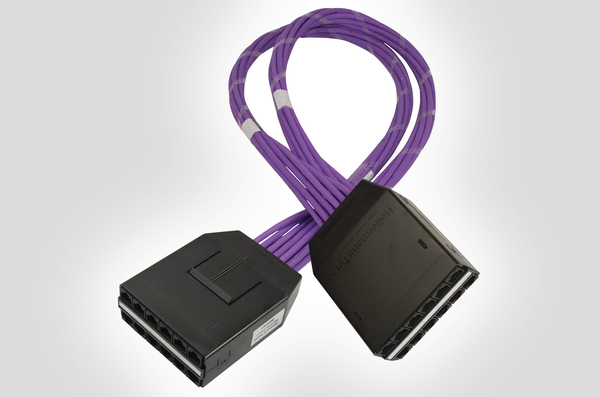

RapidNet 12 Port Category 6 Cassette to Cassette
Številka proizvoda 859-06004
| RN12UC6-CACAXX-10.0M
|
Podrobnosti
- Exceeds Category 6 performance standards
- 12 Port high density RapidNet Cassette
- 48 Ports in 1U
- Clear labelling presentation with magnifying lens
- Pre-tested with test results supplied
- Ideal 'cabinet to cabinet' solution
- Reduce installation time by up to 85%
- Backward compatible with Category 5e, Category 5 and voice
Zahtevajte svojo individualno ponudbo zdaj
Zahtevajte ponudbo
More products in this product group:
| Application | RapidNet from HellermanTyton is the unique, pre-terminated and pre-tested solution that offers uncompromised performance and quality. The RapidNet CAT6 solutions are designed to support any voice and data cabling system that is capable of running over their respective systems and are backwards compatible with existing CAT5E, CAT5 and voice network infrastructure. The 12 Port Cassette to Cassette RapidNet option is specifically designed for inter-cabinet links which are common place in today's data-centres. |
| Colour | Violet (VT) |
| Connector Type | RJ45 UTP |
| Description | The RapidNet 12 Port Cassette to Cassette is pre-terminated with 12 RJ45 ports in each cassette which has its own magnified labelling field for effective port identification. The 12 Port Cassette to Cassette option presents 12 RJ45 ports in one cassette, with 4 cassettes fitting into a 12 Port RapidNet Patch Panel. A fully loaded panel presents 48 ports in 1U of space. The Cassette to Cassette option provides a high density cabinet to cabinet solution for the data centre and comms room. |
| PART DESCRIPTION | RN12UC6-CACAXX-10.0M |
| Pack Cont. | 10.0m |
| Performance Category | Category 6 (Class E) |
| Port count | 12 |
| Product Family | Cassette to Cassette |
| Product Group | RapidNet 12 Port Category 6 |
| Short Description | RapidNet 12 Port Category 6 Cassette to Cassette |
| Technical Description | The RapidNet Cassette has been designed to provide a jack life of a minimum of 1000 insertions. The cassette is manufactured with a simple push clip mechanism and polarising clips to prevent incorrect insertion. Rear cable management is provided within the RapidNet Cassette with integral strain relief which provides protection to all the cables and their terminations. All RapidNet terminations are tested to exceed the latest published versions of ISO/IEC 11801, BS/EN50173 and ANSI/TIA/EIA 568 – C Category 6 standards. All RapidNet Category 6 cables are made with LS0H material, complying with the latest European fire ratings. NB. Part Number is given for a 10m loom as an example. Lengths are available from 5m to 90m. |
| Type | RN12UC6-CACAXX-10.0M |
