High-quality self-laminating labels
Suitable for marking of wires and cables
Laminating function gives excellent protection against humidity and mechanical abrasion
Rounded edge design gives additional bonding strength
Thicker material (50 micron) for longer labels
Simple and efficient label design and printing with TagPrint Pro labelling software
Templates available from www.HellermannTyton.com/templates for those wishing to use MS Word
Clear protective box to ensures labels stay as good as new

Zahtevajte svojo individualno ponudbo zdaj

Zahtevajte ponudbo

Poiščite distributerja v svoji bližini

More products in this product group:

Ta izdelek je del:

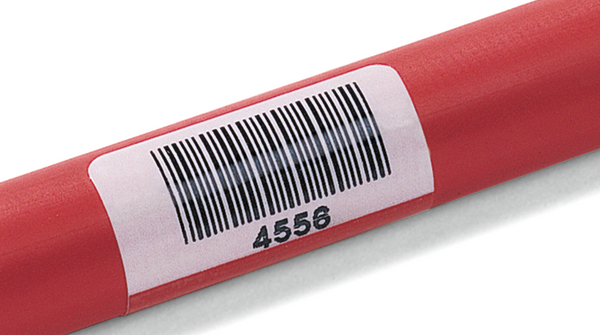

Application	These labels are ideal for marking cables of a larger diameter. The type 1105 self-laminating labels exceed the length of 100 mm and are made of a thicker material than type 1104. Because of its greater material rigidity these labels can be easily removed from the sheet and applied by hand to larger cables and hoses.
Application Method	The functionality and durability of the labels can be negatively affected if improperly processed or applied. All surfaces to be bonded must be clean, dry as well as free from dust and grease. Avoid touching the adhesive surface of the label as this could impair the application performance.
Chem. Material Properties	Excellent resistance to alcohol, gasoline, cleaning solvents, butanol, ethyl and Butylcellosolve solvent, battery acid.
Colour	White (WH), Transparent (CL)
Colour Marking Field	White (WH)
Fixation Method	Stick
Material	Type 1105, Polyester, white transparent, self-laminating (1105)
PART DESCRIPTION	TAG139LA4-1105-CL/WH
Pack Cont.	500pcs.
Package Content packed in	pack
Paper Format	A4
Product Family	Helatag 1105 (White-Transparent)
Product Group	Self-laminating labels, laser printer
Self adhesive (Yes/No)	Yes
Short Description	Self-laminating labels, laser 38.10x25.40x139.70 mm white-clear
Type	TAG139LA4
Variant	Adhesive label
With label space	Yes


Bundle Diameter max (metric)	36.40mm
Bundle ∅	18.20-36.40mm
Bundle ∅ min.	18.20mm

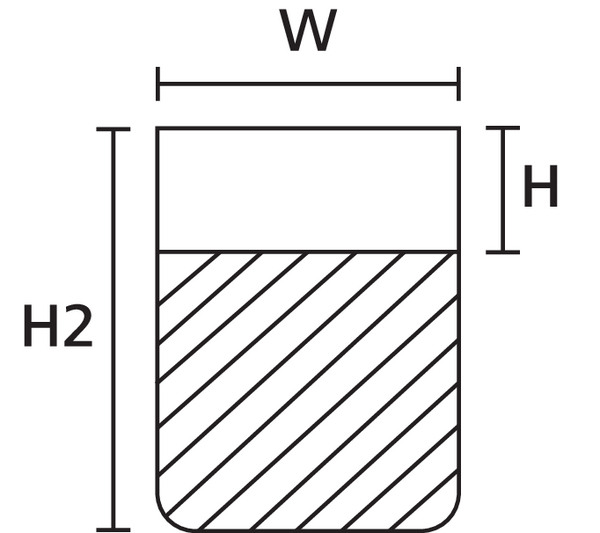

Height (H)	25.40mm
Height (H2)	139.70mm
Outside ∅ max (OD max.)	36.40mm
Outside ∅ min. (OD min.)	18.2mm
Print Method	laser print
Print Method (Alternative)	laser beam print
Thickness (T)	23.0µm
Thickness of Adhesive (TA) nom.	22.5µm
Thickness of Foil	50
Thickness of foil test method	TAPPI 411
VR	143.90mm
Weight/Unit	0.001477kg
Width (W)	38.10mm
Width of Liner (WL)	210.00mm

Adhesive	Acrylic
Curing Temperature	from +2 °C
ELV compliant (Article 4 - 2)	YES
Halogen-free	Yes
Hazardous Goods	No
Initial tack	280g/cm²
Initial tack	ASTM D2979-71
Operating Temperature	-40 °C to +150 °C
Peel strength	100 h
Peel strength test method	FINAT FTM 8
Pre-Printed	No
ROHS compliant	Yes
Shelf Life	Minimum 1 year upon receipt / maximal 2 years after production date.
Specifications


Country of Origin	DE
Customs Number	39199080
GTIN-13 / EAN	4031026294469
Labels per Row	5pcs.
Labels per Sheet	10pcs.
Packaging 1 - Height (m)	0.015m
Packaging 1 - Length (m)	0.315m
Packaging 1 - Qty	500
Packaging 1 - Type	pack
Packaging 1 - Volume (m³)	0.00113m³
Packaging 1 - Weight (kg)	0.738kg
Packaging 1 - Width (m)	0.24m
Sheets per Pack	50pcs.
Storage Temperature	+21 °C
Storage conditions	50% relative humidity., The storage in the original packaging is recommended., Please avoid warehousing under impacts such as high humidity, heat and coldness.
