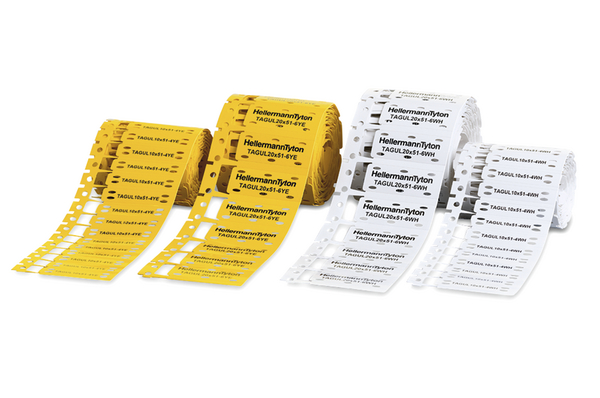

Cable marker, ladder-style, thermal transfer print, 51.5x10.4mm, white, box=2000pcs.
Številka proizvoda 556-82000
| TAGUL10X51-4WH-PO-X-WH
|
Podrobnosti
This product is not available anymore.
- General purpose cable marker
- For larger cables and wires
- Convenient "Ladder Style" format
- Good mechanical strength and highly flexible
- Delivered in convenient storage boxes
Zahtevajte svojo individualno ponudbo zdaj
Zahtevajte ponudbo
More products in this product group:

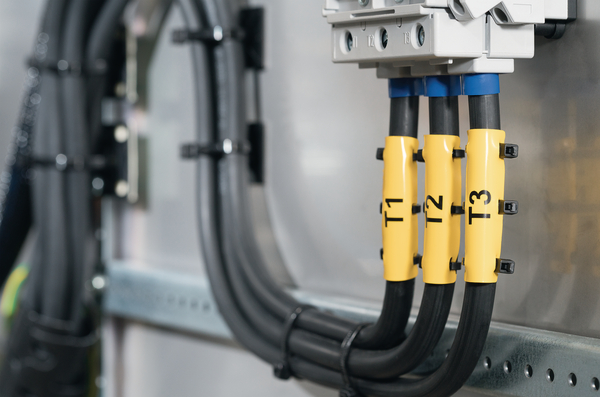

| Application | The TAGUL cable markers have been designed to identify larger wires and cable bundles in the electronics and general cabling environments and is supplied pre-cut and formatted into a convenient "ladder" system. The labels are applied to cables and harness assemblies with cable ties, and are also suitable for retrofit purposes. The material has been conditioned for printing on both thermal transfer and laser beam printers. Simply print and press out the required Tiptag and apply with cable ties. Print with HellermannTyton's premium range of thermal printers and ribbons or a laser beam marking device. |
| Colour | White (WH) |
| Fixation Method | Others |
| Material | Polyolefin, cross-linked (PO-X) |
| PART DESCRIPTION | TAGUL10X51-4WH-PO-X-WH |
| Pack Cont. | 2000pcs. |
| Package Content packed in | box |
| Printable | Yes |
| Product Family | TAGUL – Standard Tiptags |
| Product Group | Identification tags for cable bundle "Ladder Style", thermal transfer |
| Short Description | Identification tags for cable bundle in ladder style 51x10 mm white |
| Type | TAGUL10X51-4WH |
| Variant | Thin-Wall |
| With inner glue (Yes/No) | No |
| With label space | Yes |
Prenos
| ELV compliant (Article 4 - 2) | YES |
| Flammability | ASTM D2671 B |
| Hazardous Goods | No |
| Operating Temperature | -55 °C to +135 °C |
| ROHS compliant | Yes |
| Recommended Ribbon Type | TTDTHOUT |
| Reel Variant | ladder-style |
| Specifications |
|
| Specifications | SAE - AMS - DTL-23053/5 Class 1 and 3, SAE - AS81531, UL 224 125 °C 600V VW-1 |
| UL Recognized (US) | No |
| US Gov. Designation | SAE-AMS-DTL-23053/6 Class 1, MIL-STD-202G Method 215 |
| Country of Origin | GB |
| Customs Number | 39209990 |
| GTIN-13 / EAN | 4031026472546 |
| Labels per Column | 1 |
| Markers per row | 1 |
| Packaging 1 - Height (m) | 0.1m |
| Packaging 1 - Length (m) | 0.175m |
| Packaging 1 - Qty | 2000 |
| Packaging 1 - Type | carton |
| Packaging 1 - Volume (m³) | 0.00306m³ |
| Packaging 1 - Weight (kg) | 2.9kg |
| Packaging 1 - Width (m) | 0.175m |
