Heat shrink marker, thermal transfer print, continuous, 39.8mm/19.1mm, yellow, 13m
Številka proizvoda 553-62033 | TDRT38YE-PO-X-YE |  Podrobnosti

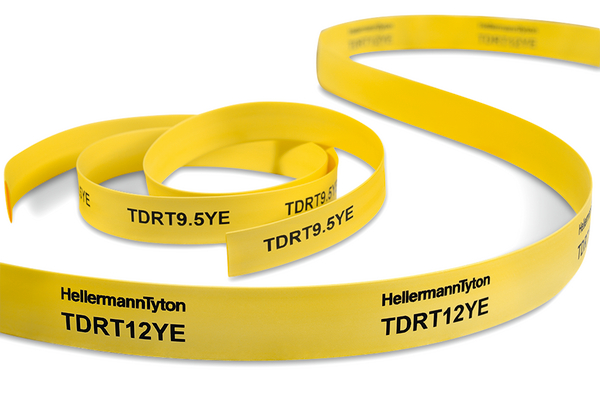

Certified diesel resistant heatshrink markers TDRT.

    • Shrink ratio 2:1
    • Resistant to diesel and common fluids
    • Available in yellow as standard and white on request
    • Delivery in convenient storage boxes
    Ne pozabite

    Zahtevajte svojo individualno ponudbo zdaj

     Zahtevajte ponudbo
    Downloads
    Application TDRT is a diesel resistant 2:1 heat shrink material which is rail approved. It is supplied as a continuous tube and printable on both sides. The TDRT material is ideal where resistance to diesel, organic fluids, common fuels, lubricants and solvents properties are required, e.g. in mass transit, aerospace, marine and industrial installations. The tubing has been especially prepared so that the print performance is excellent at all times using HellermannTyton's printer range. In addition it is possible to either perforate the tubing at pre-determined lengths or fully sever the markers. The material is also especially formulated to be printable with laser beam printers.
    Colour Yellow (YE)
    Material Polyolefin, cross-linked (PO-X)
    PART DESCRIPTION TDRT38YE-PO-X-YE
    Pack Cont. 13m
    Package Content packed in carton
    Printable Yes
    Product Family TDRT - 2:1 Rail Diesel Resistant
    Product Group Shrinkable markers "Continuous Tube", thermal transfer
    Short Description Rail diesel resistant shrinkable markers continuous TDRT 2:1 printable 38.1/19.1 yellow 13m/box = 1 reel
    Shrink Ratio 2:1
    Type TDRT38YE
    Variant Thin-Wall
    With inner glue (Yes/No) No
    Print Method thermal transfer print
    Print Method (Alternative) laser beam print
    Recov. ∅ d max. 19.1mm
    Supplied ∅ D min. 39.8mm
    Wall (WT) 0.64mm
    Weight/Unit 0.01179kg
    ELV compliant (Article 4 - 2) YES
    Halogen-free No
    Hazardous Goods No
    Limited Fire Hazard Yes
    Min. Shrink Temperature - °C +120 °C
    Operating Temperature -55 °C to +135 °C
    Oxygen index 26.3%
    ROHS compliant Yes
    Recommended Ribbon Type TTDTHOUT
    Reel Variant continuous
    Specifications
    Country of Origin CN
    Customs Number 39173200
    GTIN-13 / EAN 4031026579399
    Packaging 1 - Height (m) 0.072m
    Packaging 1 - Length (m) 0.16m
    Packaging 1 - Qty 13
    Packaging 1 - Type reel
    Packaging 1 - Volume (m³) 0.00184m³
    Packaging 1 - Weight (kg) 0.15327kg
    Packaging 1 - Width (m) 0.16m
    Packaging 2 - Height (m) 0.168m
    Packaging 2 - Length (m) 0.168m
    Packaging 2 - Qty 13
    Packaging 2 - Type carton
    Packaging 2 - Volume (m³) 0.0031m³
    Packaging 2 - Weight (kg) 0.25627kg
    Packaging 2 - Width (m) 0.11m
    Reel Length 13.0m
    ETIM 7.0 Key EC000217
    ETIM 8.0 Key EC000217
    ETIM 9.0 Key EC000217
