19/11/2024

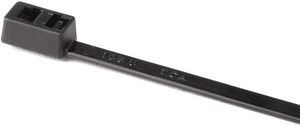

Cable tie inside serrated, 305.0x4.7mm, ∅1.6-76.2mm, black, 100pcs.
Art.-No. 117-05360 | T50IDH-PA66W-BK |  Details

Double-head cable ties feature a dual locking design to secure two bundles at once.

    • Possibility to separate bundles with only one cable tie
    • Cable tie with two heads creating an inside and outside serrated loop
    • Available in a wide range of materials
    • Bundles can be of different diameter
    • Maximum bundle diameter is a maximum combined bundle
    • Easy application either manually or with a processing tool
    Show more
    Add to watchlist
    Downloads Datasheet
    e-Learning
    Application Double loop head ties are ideal for separation of two cable runs without the need for additional cable ties. Additionally these ties are widely used within the packaging industry. The first loop closes and secures the bag whilst the second loop can be made into a carrying handle (subject to weight).
    Colour Black (BK)
    Identification Plate Position none
    Key product features for multiple routing
    Material Polyamide 6.6, UV-resistant (PA66W)
    PART DESCRIPTION T50IDH-PA66W-BK
    Pack Cont. 100pcs.
    Package Content packed in bag
    Product Family DH-Series
    Product Group Cable ties for parallel routing
    Releasable Closure (Yes/No) No
    Short Description Two Head Cable Tie 305x4.7 PA66W black
    Tie Closure plastic pawl
    Type T50IDH
    Variant Inside Serrated
    Bundle Diameter max (metric) 76.2mm
    Bundle ∅ 1.6-76.2mm
    Bundle ∅ min. 1.6mm

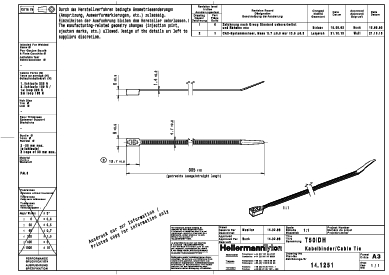

    Length (L) 305.0mm
    Min. Tensile Strength 2nd loop 180.0N
    Min.Tensile Strength 225N
    Thickness (T) 1.4mm
    Weight/Unit 0.0019kg
    Width (W) 4.7mm
    ∅ max. 1. loop 76.2mm
    ∅ max. 2. loops 38.1mm
    CE Certification Yes
    CSA Certified No
    ELV compliant (Article 4 - 2) YES
    Flammability UL 94 V2
    Halogen-free Yes
    Hazardous Goods No
    Nato number 5975-12-357-9951
    Operating Temperature -40 °C to +85 °C
    ROHS compliant Yes
    Specifications ANSI/UL 1565, ANSI/UL 62275, ANSI/UL 746B
    Specifications
    UL Listed (US and Canada) No
    UL Listed (US and Canada) No
    UL Recognized (US and Canada) Yes
    UL Recognized (US and Canada) Yes
    UL Type 11
    UL-File Number E64139
    UV-Stabilised Yes
    Country of Origin US
    Customs Number 39269097
    GTIN-13 / EAN 4031026108988
    Packaging 1 - Height (m) 0.04m
    Packaging 1 - Length (m) 0.43m
    Packaging 1 - Qty 100
    Packaging 1 - Type bag
    Packaging 1 - Volume (m³) 0.00258m³
    Packaging 1 - Weight (kg) 0.240001kg
    Packaging 1 - Width (m) 0.15m
    Packaging 3 - Height (m) 0.2159m
    Packaging 3 - Length (m) 0.606425m
    Packaging 3 - Qty 5000
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.052m³
    Packaging 3 - Weight (kg) 12.86005kg
    Packaging 3 - Width (m) 0.396875m
    Packaging 4 - Height (m) 1.224m
    Packaging 4 - Length (m) 1.2m
    Packaging 4 - Qty 75000
    Packaging 4 - Type pallet
    Packaging 4 - Volume (m³) 1.175m³
    Packaging 4 - Weight (kg) 213.9kg
    Packaging 4 - Width (m) 0.8m
    ETIM 7.0 Key EC000046
    ETIM 8.0 Key EC000046
    ETIM 9.0 Key EC000046
    UNSPSC Key 39121703
