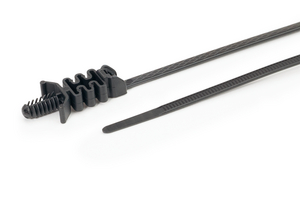

Fixing tie for hole (round), outside serrated, ∅1.0-35.0mm, black, 1500pcs.
Art.-No. 126-00398 | T30ROSASVDWPM6.6E-PA66HIRHS-BK |  Details

Our 1-piece fixing ties with the AntiSlip engraving and the vibration damper are perfect for securely routing cables and decoupling them from the ground.

    • Bundling and fixing solution
    • Ideal combination of materials and design
    • Different positions of the fixing anchor are available to fit installation space
    Add to watchlist
    Downloads Datasheet
    Colour Black (BK)
    Fixation Method arrowhead
    Identification Plate Position none
    Key product features vibration absorbing
    Material Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
    PART DESCRIPTION T30ROSASVDWPM6.6E-PA66HIRHS-BK
    Pack Cont. 1500pcs.
    Package Content packed in bag
    Product Family vibration damped
    Product Group 1-Piece fixing ties with fir tree, with wings, for round holes
    Releasable Closure (Yes/No) No
    Tie Closure plastic pawl
    Type T30ROSASVDWPM6.6E
    Variant Outside Serrated with AntiSlip Engraving
    Bundle Diameter max (metric) 35.0mm
    Bundle ∅ 1.0-35.0mm
    Bundle ∅ min. 1.0mm
    Length (L) 174.8mm
    Length (L2) 19.4mm
    Length (L3) 13.4mm
    Min.Tensile Strength 200N
    Offset Length 19.4mm
    Thickness (T) 1.2mm
    Weight/Unit 0.001494kg
    Width (W) 3.45mm
    for Hole ∅ (FH) 6.3 - 7.0 mm
    for Panel Thickness min - max 2.6 - 5 mm
    ELV compliant (Article 4 - 2) YES
    Hazardous Goods No
    Operating Temperature -40 °C to +105 °C
    ROHS compliant Yes
    Specifications
    Country of Origin PL
    Customs Number 39269097
    GTIN-13 / EAN 4031026647463
    Packaging 1 - Height (m) 0.16m
    Packaging 1 - Length (m) 0.33m
    Packaging 1 - Qty 1500
    Packaging 1 - Type bag
    Packaging 1 - Volume (m³) 0.02006m³
    Packaging 1 - Weight (kg) 2.284597kg
    Packaging 1 - Width (m) 0.38m
    Packaging 3 - Height (m) 0.368m
    Packaging 3 - Length (m) 0.584m
    Packaging 3 - Qty 6000
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.083m³
    Packaging 3 - Weight (kg) 9.958388kg
    Packaging 3 - Width (m) 0.386m
    Packaging 4 - Height (m) 1.248m
    Packaging 4 - Length (m) 1.2m
    Packaging 4 - Qty 72000
    Packaging 4 - Type pallet
    Packaging 4 - Volume (m³) 1.198m³
    Packaging 4 - Weight (kg) 140.52kg
    Packaging 4 - Width (m) 0.8m
    ETIM 7.0 Key EC000046
    ETIM 8.0 Key EC000046
    ETIM 9.0 Key EC000046
    UNSPSC Key 39121703
    Cable holder Cable holder

    Cable holder

    Looking for a secure way to fasten cables or wires? Our plastic cable holders are easy to install and suitable for almost any application. Learn more...
