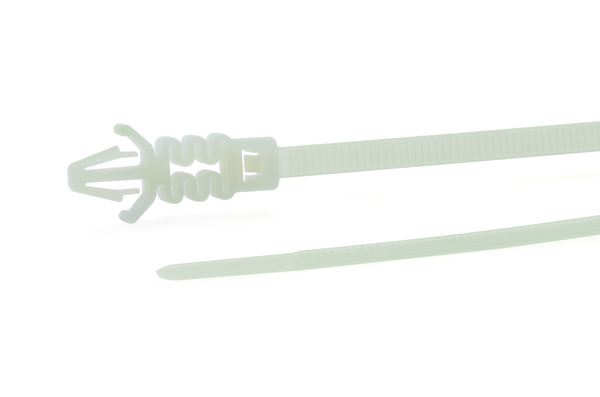

Fixing tie for hole (round), inside serrated, ∅1.6-25.0mm, natural, 1000pcs.
Art.-No. 150-23295 | T50SVD-PA66HS-NA |  Details

    • Bundling and fixing solution
    • Ideal combination of materials and design
    • Different positions of the fixing anchor are available to fit installation space
    Add to watchlist
    Downloads Datasheet
    Colour Natural (NA)
    Identification Plate Position none
    Key product features vibration absorbing
    Material Polyamide 6.6, heat stabilised (PA66HS)
    PART DESCRIPTION T50SVD-PA66HS-NA
    Pack Cont. 1000pcs.
    Package Content packed in bag
    Product Family vibration damped
    Product Group 1-Piece fixing ties with arrowhead, with wings, for round holes
    Releasable Closure (Yes/No) No
    Tie Closure plastic pawl
    Type T50SVD
    Variant Inside Serrated
    Bundle Diameter max (metric) 25.0mm
    Bundle ∅ 1.6-25.0mm
    Bundle ∅ min. 1.6mm
    Disc ∅ 15.0mm
    Height (H) 6mm
    Length (L) 161mm
    Min.Tensile Strength 225N
    Weight/Unit 0.001629kg
    Width (W) 4.6mm
    for Hole ∅ (FH) 6.0 - 6.6 mm
    for Panel Thickness min - max 0.7 - 3 mm
    ELV compliant (Article 4 - 2) YES
    Flammability UL 94 V2
    Hazardous Goods No
    ROHS compliant Yes
    Specifications
    Country of Origin DE
    Customs Number 39269097
    GTIN-13 / EAN 4031026119861
    Packaging 1 - Height (m) 0.2m
    Packaging 1 - Length (m) 0.395m
    Packaging 1 - Qty 1000
    Packaging 1 - Type bag
    Packaging 1 - Volume (m³) 0.03555m³
    Packaging 1 - Weight (kg) 1.658135kg
    Packaging 1 - Width (m) 0.45m
    Packaging 3 - Height (m) 0.368m
    Packaging 3 - Length (m) 0.584m
    Packaging 3 - Qty 8000
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.083m³
    Packaging 3 - Weight (kg) 14.08508kg
    Packaging 3 - Width (m) 0.386m
    Packaging 4 - Height (m) 1.248m
    Packaging 4 - Length (m) 1.2m
    Packaging 4 - Qty 96000
    Packaging 4 - Type pallet
    Packaging 4 - Volume (m³) 1.198m³
    Packaging 4 - Weight (kg) 190.008kg
    Packaging 4 - Width (m) 0.8m
    ETIM 7.0 Key EC000046
    ETIM 8.0 Key EC000046
    ETIM 9.0 Key EC000046
    UNSPSC Key 39121703
