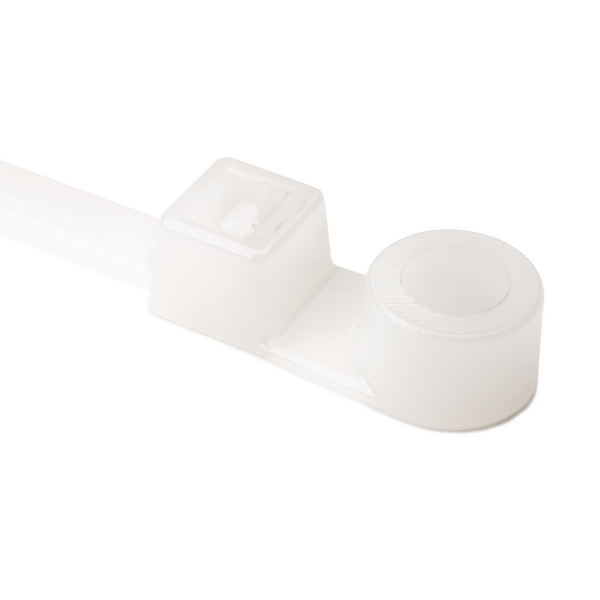

Fixing tie for screw fixation, inside serrated, ∅1.5-50.0mm, natural, 100pcs.
Art.-No. 113-00049
| T50MR-PA66HS-NA
|
Details
- One-piece bundling and fixing tie
- Quick and easy installation
![](https://www.hellermanntyton.com/shared/speclogos/99595_All_Languages.jpg)
![](https://www.hellermanntyton.com/shared/speclogos/15098_All_Languages.jpg)
More products in this product group:
Application | This range of one piece cable ties have a built in mounting hole and once fastened around the cables the bundle can be simply secured to the panel with a screw or bolt. The tie is fitted to the panel first and then the cables can be added. |
Application Tool | ProCut 9 no battery, MK3PNSP2, EVOcut, MK7P, MK10-SB, MK20, EVO7, EVO7SP, EVO7i, EVO7iSP, EVO9, EVO9SP, EVO9i, EVO9iSP |
Colour | Natural (NA) |
Fixation Method | Fixing hole |
Identification Plate Position | none |
Material | Polyamide 6.6, heat stabilised (PA66HS) |
Mounting Screw Type | M5 Screw |
PART DESCRIPTION | T50MR-PA66HS-NA |
Pack Cont. | 100pcs. |
Package Content packed in | bag |
Product Family | MR Series |
Product Group | 1-piece fixing ties with mounting head for screws |
Releasable Closure (Yes/No) | No |
Tie Closure | plastic pawl |
Type | T50MR |
Variant | Inside Serrated |
Bundle Diameter max (metric) | 50.0mm |
Bundle ∅ | 1.5-50.0mm |
Bundle ∅ min. | 1.5mm |
Cable Tie Head Height (metric) | 5.5mm |
Cable Tie Head Length (metric) | 20.5mm |
Cable Tie Head Width (metric) | 8.5mm |
Height (H) | 5.7mm |

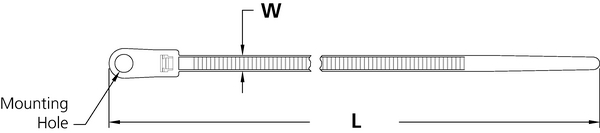

Length (L) | 215mm |
Min.Tensile Strength | 225N |
Thickness (T) | 1.3mm |
Width (W) | 4.7mm |
for Hole ∅ (FH) | 5.2 mm |
Flammability | UL 94 V2 |
Operating Temperature | -40 °C to +110 °C |
ROHS compliant | Yes |
Specifications |
![]() ![]() |
Specifications | ANSI/UL 1565, ANSI/UL 62275 |
UL OCD link | Link |
UL Recognized (US and Canada) | Yes |
UL-File Number | E64962 |
