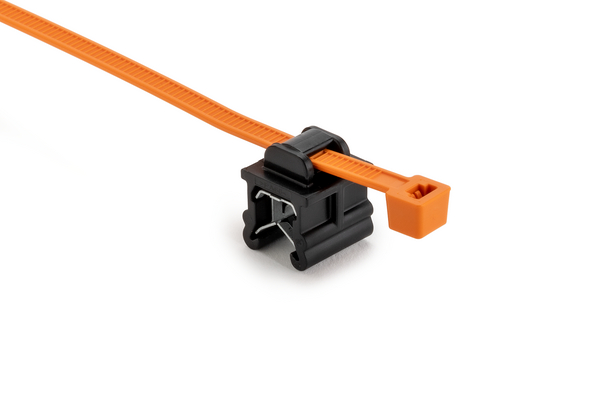

Fixing tie for edge, inside serrated, ∅1.0-50.0mm, orange/black, 500pcs.
Art.-No. 156-04055 | T50REC20-PA66HIRHS/PA66-OG/BK |  Details

Two piece assembly allows the mount to slide along the strap ensuring proper orientation.

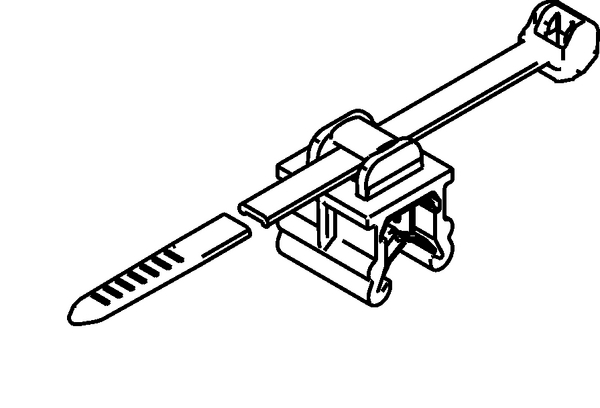

    • Pre-assembled 2-piece fixing tie with EdgeClip
    • Cable tie head can be moved after bundling
    • For minimum bundle diameters of 1 mm
    • For edges of 3 – 6 mm
    Add to watchlist
    Downloads Datasheet
    Application These cable ties and EdgeClip assemblies are ideal for use where holes are not acceptable or where due to temperature problems adhesives will fail. These assemblies are widely used for fixing and bundling cables, pipes and hoses within the automotive industry, harness making, panel building and electrical industry.
    Cable Tie Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
    Colour Orange (OG), High Voltage (HV), Black (BK)

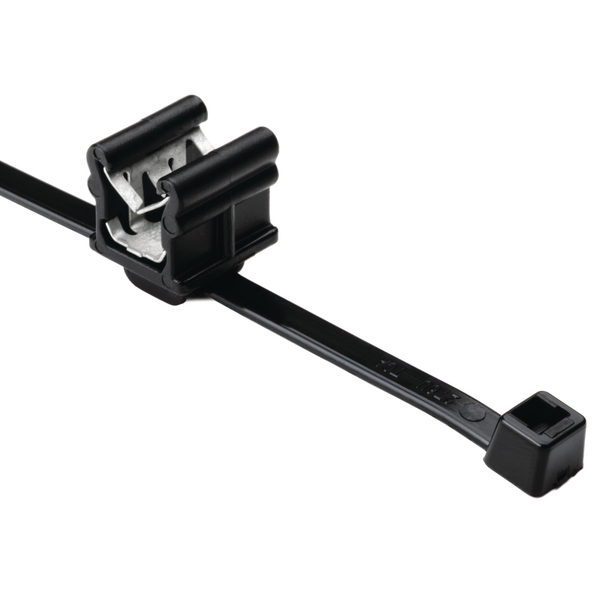

    Description Available with either 'inside' or 'outside' serrated ties these two piece assemblies simply push onto an edge with thicknesses from 3.0 to 6.0mm. The high 'pull off' forces are due to the integrated metal clamp. Different Edge Clip variations are available. One version allows for cables to run parallel to the edge, whilst another allows for installation at 90 degrees to the edge. The clip is simply pushed on by hand and held firmly in place by the integrated metal clamp. No fixing hole is necessary. Combined with the outside serrated (OS) ties, specially designed to protect cables from chafing and wear, the Edge Clip family provides an excellent fastening solution.
    Fixation Method Edge Clip
    Identification Plate Position none
    Key product features for narrow bundling
    Material Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS), Polyamide 6.6 (PA66)
    PART DESCRIPTION T50REC20-PA66HIRHS/PA66-OG/BK
    Pack Cont. 500pcs.
    Package Content packed in bag
    Product Family EdgeClip-Series, 3.0 - 6.0 mm, top fixing
    Product Group 2-Piece Fixing Ties for Edges, 3,0 - 6,0 mm
    Releasable Closure (Yes/No) No
    Type T50REC20
    Variant Inside Serrated
    Bundle Diameter max (metric) 50.0mm
    Bundle ∅ 1.0-50.0mm
    Bundle ∅ min. 1.0mm
    Height (H) 1.2mm
    Height (H2) 17.8mm
    Length (L) 200.0mm
    Length (L2) 14.8mm
    Min.Tensile Strength 225N
    Panel Thickness max. 3.0 - 6.0mm
    Strap Width max. (G) 0.18"
    Width (W) 4.6mm
    Width (W2) 14.0mm
    for Panel Thickness min - max 3 - 6 mm
    for Panel Thickness min - max 0.1 - 0.2 "
    CE Certification No
    CSA Certified No
    Flammability UL 94 HB
    Halogen-free No
    Operating Temperature -40 °C to +85 °C
    ROHS compliant Yes
    Specifications
    UL Recognized (US and Canada) No
    UV-Stabilised No
    Country of Origin DE
    GTIN-13 / EAN 4031026665405
    Packaging 3 - Height (m) 0.357m
    Packaging 3 - Length (m) 0.579m
    Packaging 3 - Qty 4000
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.0568m³
    Packaging 3 - Weight (kg) 12.9kg
    Packaging 3 - Width (m) 0.275m
    Packaging 4 - Qty 96000
    Packaging 4 - Type pallet
    ETIM 7.0 Key EC000046
    ETIM 8.0 Key EC000046
    ETIM 9.0 Key EC000046
    UNSPSC Key 39121717
