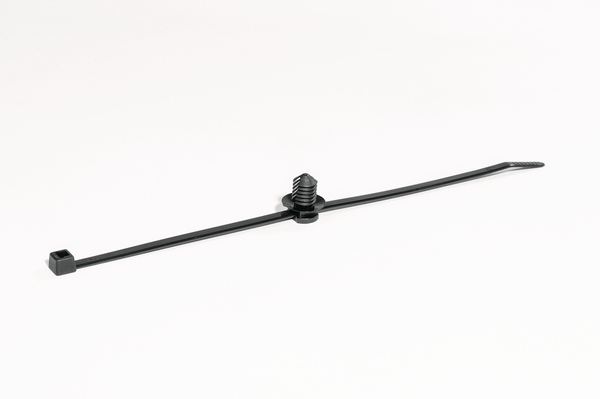

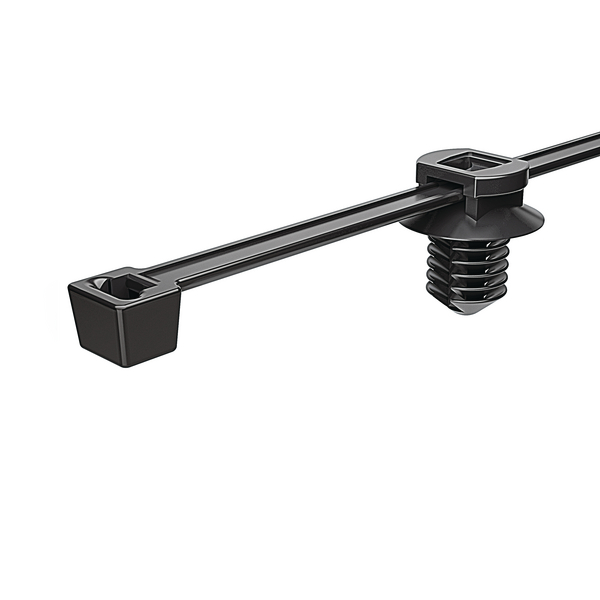

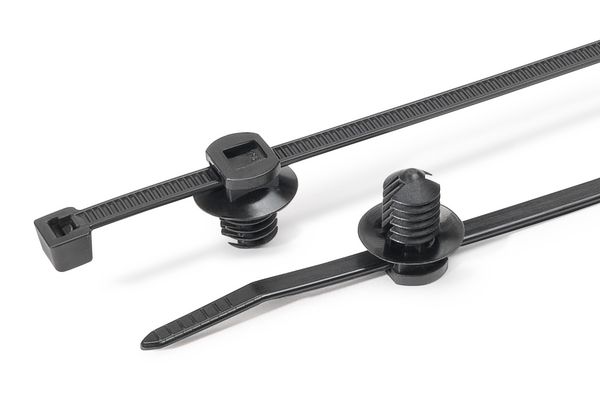

Fixing tie for hole (round), inside serrated, ∅5.0-50.0mm, black, 500pcs.
Art.-No. 156-00376
| T50RFT8-PA66HS-BK
|
Details

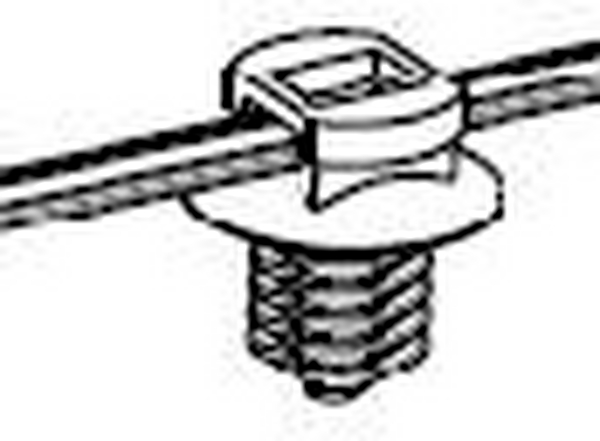

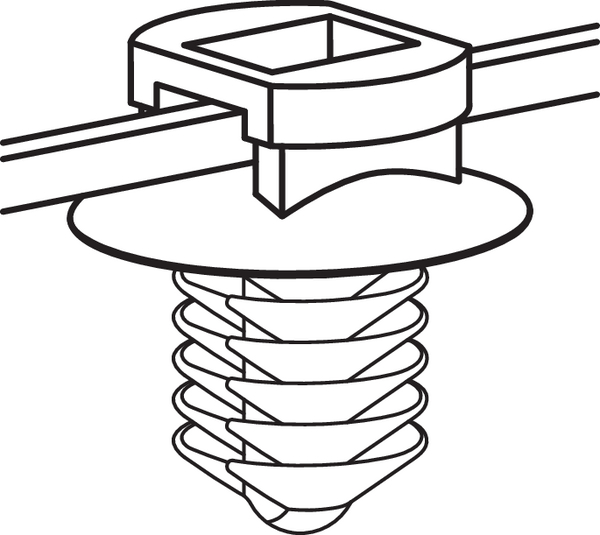

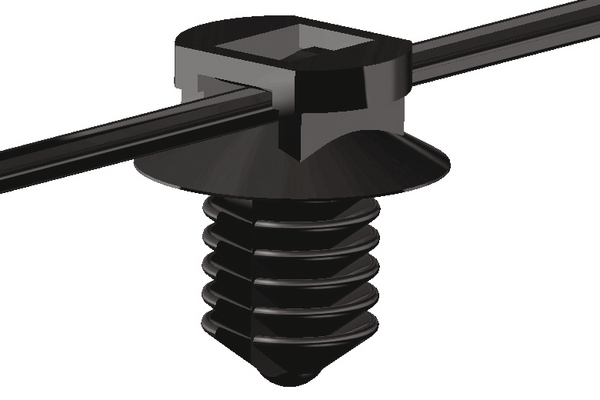

- Pre-assembled 2-piece fixing tie with fir tree foot part
- Cable tie head can be moved after bundling
- Easy to assemble without the need for a tool
- Disc adjusts tie for pressure from various directions and minimises access of dust and dirt
- Fir tree foot part can be used for a variety of panel thicknesses
- Suitable for use within threaded holes
More products in this product group:

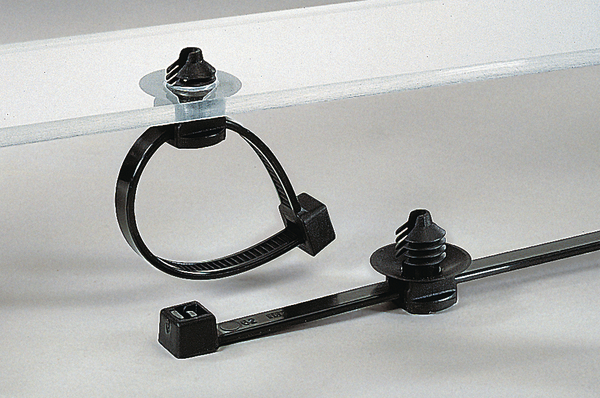

Application | Primarily designed for fixing cable harnesses in the automotive industry their simplicity, and ease of use, has seen these parts used in everything from aircraft, to switch-gear, to washing machines. |
Cable Tie | Polyamide 6.6, heat stabilised (PA66HS) |
Colour | Black (BK) |
Fixation Method | Fir tree for round holes |
Foot Part | Polyamide 6.6, heat stabilised (PA66HS) |
Identification Plate Position | none |
Internet Customer Notice | Scroll down for alternative automation-ready products. |
Material | Polyamide 6.6, heat stabilised (PA66HS) |
PART DESCRIPTION | T50RFT8-PA66HS-BK |
Pack Cont. | 500pcs. |
Package Content packed in | bag |
Product Family | Fir tree parts FT8 |
Product Group | 2-piece fixing ties with fir tree, with disc, for round holes |
Releasable Closure (Yes/No) | No |
Tie Closure | plastic pawl |
Type | T50RFT8 |
Variant | Inside Serrated |
Bundle Diameter max (metric) | 50.0mm |
Bundle ∅ | 5.0-50.0mm |
Bundle ∅ min. | 5.0mm |
Disc ∅ | 16.0mm |
Height (H) | 1.20mm |
Height (H2) | 12.70mm |

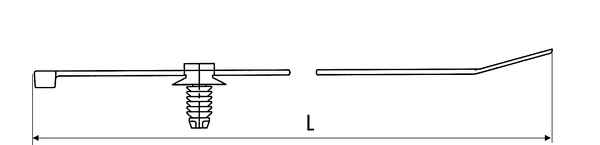

Length (L) | 202mm |
Length (L2) | 12.0mm |
Length (L3) | 18.6mm |
Min.Tensile Strength | 225N |
Panel Thickness max. | 0.8 - 6.0mm |
Thickness (T) | 1.2mm |
Width (W) | 4.6mm |
Width (W2) | 9.0mm |
Width (W3) | 9.0mm |
for Hole ∅ (FH) | 7.7 - 8.0 mm |
for Panel Thickness min - max | 0 - 0.3 " |
for Panel Thickness min - max | 0.8 - 6 mm |
CE Certification | No |
CSA Certified | No |
Flammability | UL 94 V2 |
Operating Temperature | -40 °C to +105 °C |
Operating Temperature Foot Part (Metric) | -40 °C to +105 °C |
ROHS compliant | Yes |
Specifications | |
UL Listed (US and Canada) | No |
UL Listed (US and Canada) | No |
UL Recognized (US and Canada) | No |
UL Recognized (US and Canada) | No |
UV-Stabilised | No |
