18/12/2024

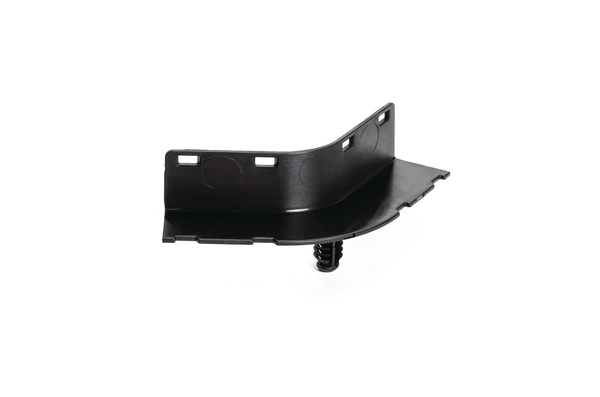

Mini cable channel, 120°, for hole (round), L=76.53mm, black, 856pcs.
Art.-No. 151-02587 | 120MINICHNLFT6.5-PA66HIRHSUV-BK |  Details

    • Angled channel allows specific guidance around corners or obstructions
    • U-Shape channel provides three sides of protection for wire or bundle
    • Protects against abrasion and other environmental factors
    • Types made from PPT20 material convince with a high operating temperature
    Add to watchlist
    Downloads Datasheet
    Application The mini cable channel family allows a cost effective routing solution that provides protection and configurable routing. Pieces are modular and interchangeable, providing high levels of customization. Mini channels replace engineered channels which are costly to design and develop.
    Colour Black (BK)
    Fixation Method Fir tree for round holes
    Material Polyamide 6.6, high impact modified, heat and UV-stabilised (PA66HIRHSUV)
    PART DESCRIPTION 120MINICHNLFT6.5-PA66HIRHSUV-BK
    Pack Cont. 856pcs.
    Package Content packed in carton
    Product Family Modular and interchangeable cable routing system
    Product Group Mini cable channel family
    Type 120MINICHNLFT6.5
    Angle 120
    Length (L) 76.53mm
    Panel Thickness max. 0.5 - 4.25mm
    Width (W) 19.44mm
    for Hole ∅ (FH) 6.1 - 7.0 mm
    for Panel Thickness min - max 0.5 - 4.3 mm
    CE Certification No
    CSA Certified No
    Operating Temperature -40 °C to +110 °C
    ROHS compliant Yes
    Specifications
    UL Listed (US and Canada) No
    UL Listed (US and Canada) No
    UL Recognized (US and Canada) No
    UL Recognized (US and Canada) No
    UV-Stabilised Yes
    Country of Origin MX
    GTIN-13 / EAN 4031026715186
    Packaging 3 - Height (m) 0.20955m
    Packaging 3 - Length (m) 0.517525m
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.0344m³
    Packaging 3 - Width (m) 0.3175m
    ETIM 7.0 Key EC000127
    ETIM 8.0 Key EC000127
    ETIM 9.0 Key EC000127
    UNSPSC Key 39121702
