Mini cable channel, for screw fixation, L=88.4mm, black, 500pcs.
Art.-No. 151-03263 | 60MINICHNL-PPTD20-BK |  Details

Angled mini channel provides safe routing of wires around corners or obstructions

    • Angled channel allows specific guidance around corners or obstructions
    • U-Shape channel provides three sides of protection for wire or bundle
    • Protects against abrasion and other environmental factors
    • Types made from PPT20 material convince with a high operating temperature
    Add to watchlist
    Downloads Datasheet
    Application The mini cable channel family allows a cost effective routing solution that provides protection and configurable routing. Pieces are modular and interchangeable, providing high levels of customization. Mini channels replace engineered channels which are costly to design and develop.
    Colour Black (BK)
    Material Polypropylene 20% Talkum (PPTD20)
    PART DESCRIPTION 60MINICHNL-PPTD20-BK
    Pack Cont. 500pcs.
    Package Content packed in box
    Product Family Modular and interchangeable cable routing system
    Product Group Mini cable channel family
    Type 60MINICHNL

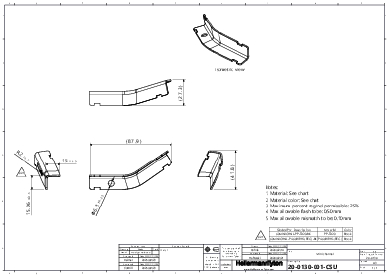

    Bundling Bar Length 3.48"
    Bundling Bar Length 88.4mm
    Height (H) 27.3mm
    Length (L) 88.4mm
    Weight/Unit 0.004536kg
    Width (W) 15.0mm
    for Hole ∅ (FH) 6.3 - 6.5 mm
    CE Certification No
    CSA Certified No
    ELV compliant (Article 4 - 2) YES
    Flammability UL 94 HB
    Hazardous Goods No
    Operating Temperature -40 °C to +105 °C
    ROHS compliant Yes
    Specifications
    UL Listed (US and Canada) No
    UL Listed (US and Canada) No
    UL Recognized (US and Canada) No
    UL Recognized (US and Canada) No
    Country of Origin US
    Customs Number 39269097
    GTIN-13 / EAN 4031026647173
    Packaging 1 - Qty 500
    Packaging 1 - Type bag
    Packaging 1 - Weight (kg) 2.268001kg
    Packaging 3 - Height (m) 0.212725m
    Packaging 3 - Length (m) 0.51435m
    Packaging 3 - Qty 500
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.0347m³
    Packaging 3 - Weight (kg) 2.888001kg
    Packaging 3 - Width (m) 0.3175m
    Packaging 4 - Height (m) 1.209m
    Packaging 4 - Length (m) 1.2m
    Packaging 4 - Qty 10000
    Packaging 4 - Type pallet
    Packaging 4 - Volume (m³) 1.161m³
    Packaging 4 - Weight (kg) 78.76kg
    Packaging 4 - Width (m) 0.8m
    ETIM 7.0 Key EC000127
    ETIM 8.0 Key EC000127
    ETIM 9.0 Key EC000127
    UNSPSC Key 39121702
