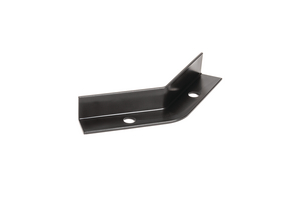

Mini cable channel, 45°, for hole (round), L=89.7mm, black, 50pcs.
Art.-No. 151-03088 | 45MINICHNL2-PPTD20-BK |  Details

    • Angled channel allows specific guidance around corners or obstructions
    • U-Shape channel provides three sides of protection for wire or bundle
    • Protects against abrasion and other environmental factors
    • Types made from PPT20 material convince with a high operating temperature
    Package size
    Add to watchlist
    Downloads Datasheet
    Application The mini cable channel family allows a cost effective routing solution that provides protection and configurable routing. Pieces are modular and interchangeable, providing high levels of customization. Mini channels replace engineered channels which are costly to design and develop.
    Colour Black (BK)
    Material Polypropylene 20% Talkum (PPTD20)
    PART DESCRIPTION 45MINICHNL2-PPTD20-BK
    Pack Cont. 50pcs.
    Package Content packed in bag
    Product Family Modular and interchangeable cable routing system
    Product Group Mini cable channel family

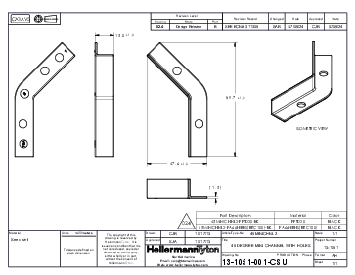

    Type 45MINICHNL2
    Angle 45
    Height (H) 15.0mm
    Length (L) 89.7mm
    Length (L2) 47.6mm
    Width (W) 1.5mm
    for Hole ∅ (FH) 6.1 - 6.9 mm
    CE Certification No
    CSA Certified No
    Flammability UL 94 HB
    Operating Temperature -40 °C to +65 °C
    ROHS compliant Yes
    Specifications
    UL Listed (US and Canada) No
    UL Listed (US and Canada) No
    UL Recognized (US and Canada) No
    UL Recognized (US and Canada) No
    UV-Stabilised No
    Country of Origin US
    GTIN-13 / EAN 4031026631912
    Packaging 3 - Height (m) 0.212725m
    Packaging 3 - Length (m) 0.51435m
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.0347m³
    Packaging 3 - Width (m) 0.3175m
    ETIM 7.0 Key EC000127
    ETIM 8.0 Key EC000127
    ETIM 9.0 Key EC000127
    UNSPSC Key 39131600
