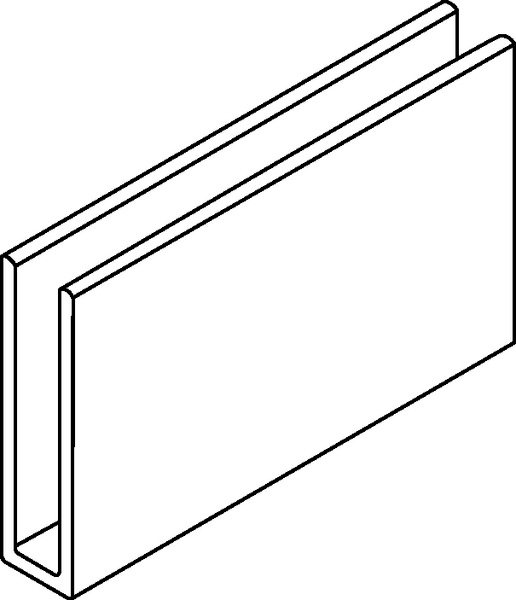

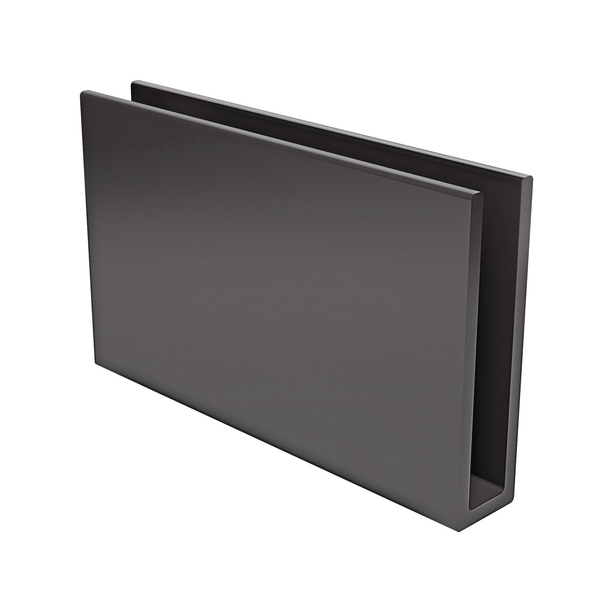

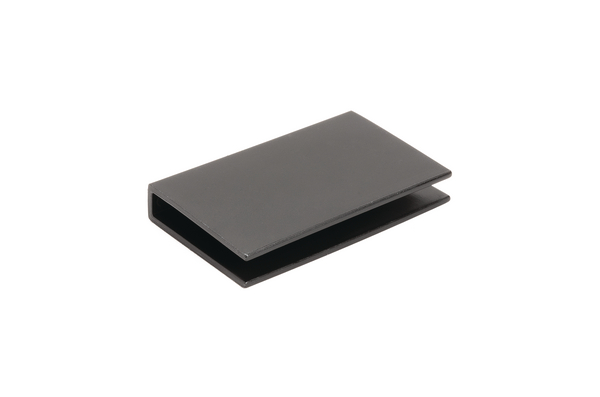

Mini cable channel, 180°, for cable bundles, L=50.0mm, black, 3000pcs.
Art.-No. 133-01476 | MINICHNLU-PPTD20-BK |  Details

U-shape channel provides three sides of protection for wire or cables.

    • Angled channel allows specific guidance around corners or obstructions
    • U-Shape channel provides three sides of protection for wire or bundle
    • Protects against abrasion and other environmental factors
    • Types made from PPT20 material convince with a high operating temperature
    Package size
    Add to watchlist
    Downloads Datasheet
    Application The mini cable channel family allows a cost effective routing solution that provides protection and configurable routing. Pieces are modular and interchangeable, providing high levels of customization. Mini channels replace engineered channels which are costly to design and develop.
    Colour Black (BK)
    Material Polypropylene 20% Talkum (PPTD20)
    PART DESCRIPTION MINICHNLU-PPTD20-BK
    Pack Cont. 3000pcs.
    Package Content packed in bag
    Product Family Modular and interchangeable cable routing system
    Product Group Mini cable channel family
    Type MINICHNLU
    Angle 180
    Height (H) 30.0mm
    Length (L) 50.0mm
    Weight/Unit 0.005135kg
    Width (W) 8.0mm
    CE Certification No
    CSA Certified No
    ELV compliant (Article 4 - 2) YES
    Flammability UL 94 HB
    Hazardous Goods No
    Operating Temperature -40 °C to +65 °C
    ROHS compliant Yes
    Specifications
    UL Listed (US and Canada) No
    UL Listed (US and Canada) No
    UL Recognized (US and Canada) No
    UL Recognized (US and Canada) No
    UV-Stabilised No
    Country of Origin US
    Customs Number 39269097
    GTIN-13 / EAN 4031026482309
    Packaging 1 - Height (m) 0.19m
    Packaging 1 - Length (m) 0.585m
    Packaging 1 - Qty 3000
    Packaging 1 - Type bag
    Packaging 1 - Volume (m³) 0.03168m³
    Packaging 1 - Weight (kg) 15.405001kg
    Packaging 1 - Width (m) 0.285m
    Packaging 3 - Height (m) 0.37465m
    Packaging 3 - Length (m) 0.59055m
    Packaging 3 - Qty 3000
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.0646m³
    Packaging 3 - Weight (kg) 16.225001kg
    Packaging 3 - Width (m) 0.2921m
    Packaging 4 - Height (m) 1.269m
    Packaging 4 - Length (m) 1.2m
    Packaging 4 - Qty 36000
    Packaging 4 - Type pallet
    Packaging 4 - Volume (m³) 1.218m³
    Packaging 4 - Weight (kg) 215.7kg
    Packaging 4 - Width (m) 0.8m
    ETIM 7.0 Key EC000127
    ETIM 8.0 Key EC000127
    ETIM 9.0 Key EC000127
    UNSPSC Key 39121717
