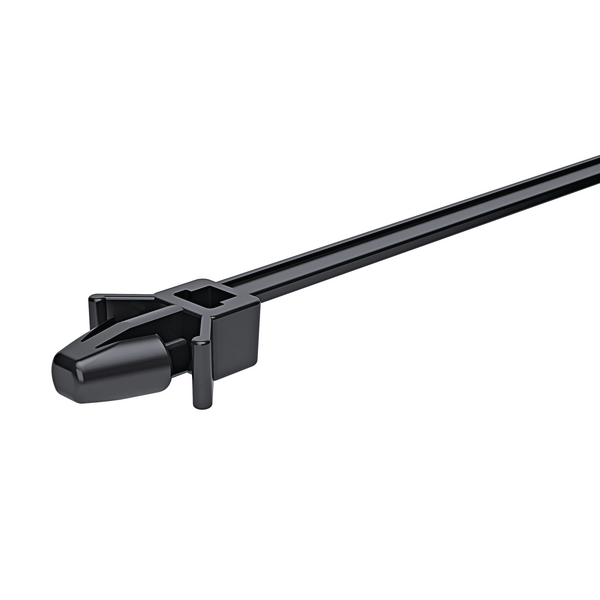

Fixing tie for hole (round), ∅1.5-27.0mm, black, 500pcs.
Številka proizvoda 126-00171 | T50XSFM-PA66HS-BK |  Podrobnosti

A wide range of arrowhead fixing ties which are suitable for different panel thicknesses and hole diameters.

    • Easy to assemble without the need for a tool
    • Cable tie head always situated in defined position
    • Arrowhead simply locks into place
    • Supporting legs provide a secure and firm fixing in areas where space is limited
    Ne pozabite

    Zahtevajte svojo individualno ponudbo zdaj

     Zahtevajte ponudbo
    Downloads
    Application For bundling and fixing of cable harnesses, pipes and hoses in many different industries, including automotive, aerospace, white goods manufacturing and panel building.
    Colour Black (BK)
    Fixation Method arrowhead
    Identification Plate Position none
    Material Polyamide 6.6, heat stabilised (PA66HS)
    PART DESCRIPTION T50XSFM-PA66HS-BK
    Pack Cont. 500pcs.
    Package Content packed in bag
    Product Family for round holes
    Product Group 1-piece fixing ties with arrowhead, with wings
    Releasable Closure (Yes/No) No
    Tie Closure plastic pawl
    Type T50XSFM
    Bundle Diameter max (metric) 27.0mm
    Bundle ∅ 1.5-27.0mm
    Bundle ∅ min. 1.5mm
    Length (L) 143.0mm
    Min.Tensile Strength 225N
    Panel Thickness max. 0.7 – 3.0mm
    Width (W) 4.6mm
    for Hole ∅ (FH) 6.35 mm (hexagonal), 6.0 - 6.6 mm
    for Panel Thickness min - max 0.7 - 3 mm
    for Panel Thickness min - max 0 - 0.1 "
    ROHS compliant Yes
    Specifications
    UL-File Number E193818
    Country of Origin CN
    GTIN-13 / EAN 4031026443904
    ETIM 7.0 Key EC000046
    ETIM 8.0 Key EC000046
    ETIM 9.0 Key EC000046
    UNSPSC Key 39121703
