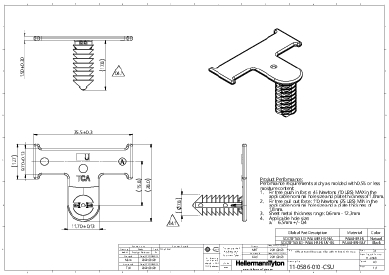

Bundling clip for hole (round), L=35.5mm, SO=15.75mm, natural, 5000pcs.
Številka proizvoda 151-01154 | SOC9FT6XLG-PA66HIRHS-NA |  Podrobnosti

Clip can be installed by hand – no need for hardware or tools.

    Ne pozabite

    Zahtevajte svojo individualno ponudbo zdaj

     Zahtevajte ponudbo
    Downloads
    Colour Natural (NA)
    Fixation Method Fir Tree
    Material Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
    PART DESCRIPTION SOC9FT6XLG-PA66HIRHS-NA
    Pack Cont. 5000pcs.
    Package Content packed in carton
    Product Family Round holes
    Product Group Bundling Clips with Fir Tree for Distance Routing
    Type SOC9FT6XLG
    Bundling Bar Length 1.40"
    Bundling Bar Length 35.5mm
    Height (H) 11.94mm
    Length (L) 35.5mm
    Length (L2) 15.75mm
    Offset Length 15.75mm
    Panel Thickness max. 0.5 - 5.84mm
    Weight/Unit 0.001149kg
    Width (W) 27.95mm
    for Hole ∅ (FH) 6.1 - 6.9 mm
    for Panel Thickness min - max 0.5 - 5.8 mm
    CE Certification No
    CSA Certified No
    ELV compliant (Article 4 - 2) YES
    Hazardous Goods No
    Operating Temperature -40 °C to +110 °C
    ROHS compliant Yes
    Specifications
    UL Listed (US and Canada) No
    UL Listed (US and Canada) No
    UL Recognized (US and Canada) No
    UL Recognized (US and Canada) No
    UV-Stabilised No
    Country of Origin US
    Customs Number 39269097
    GTIN-13 / EAN 4031026463339
    Packaging 1 - Qty 5000
    Packaging 1 - Type bag
    Packaging 1 - Weight (kg) 5.745001kg
    Packaging 3 - Height (m) 0.2159m
    Packaging 3 - Length (m) 0.606425m
    Packaging 3 - Qty 5000
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.052m³
    Packaging 3 - Weight (kg) 6.605001kg
    Packaging 3 - Width (m) 0.396875m
    Packaging 4 - Height (m) 1.224m
    Packaging 4 - Length (m) 1.2m
    Packaging 4 - Qty 75000
    Packaging 4 - Type pallet
    Packaging 4 - Volume (m³) 1.175m³
    Packaging 4 - Weight (kg) 120.075kg
    Packaging 4 - Width (m) 0.8m
    ETIM 7.0 Key EC000127
    ETIM 8.0 Key EC000127
    ETIM 9.0 Key EC000127
    UNSPSC Key 39121717
