LOC-Series Type: LOC10-14FT6LG
|
|
|
|
Če želite uporabiti seznam izdelkov, se prijavite ali registrirajte:
Prijava / Registracija
|
|
151-01166
|
Base Data |
| Colour |
Black (BK)
|
| Fixation Method |
Fir tree for round holes
|
| Key product features |
lockable
|
| Material |
Polyamide 6.6, high impact modified, heat and UV-stabilised (PA66HIRHSUV)
|
| Pack Cont. |
2000pcs.
|
| Package Content packed in |
carton
|
| PART DESCRIPTION |
LOC10-14FT6LG-PA66HIRHSUV-BK
|
| Product Family |
LOC-Series
|
| Product Group |
Fixing Elements for Tubes and Pipes
|
| Short Description |

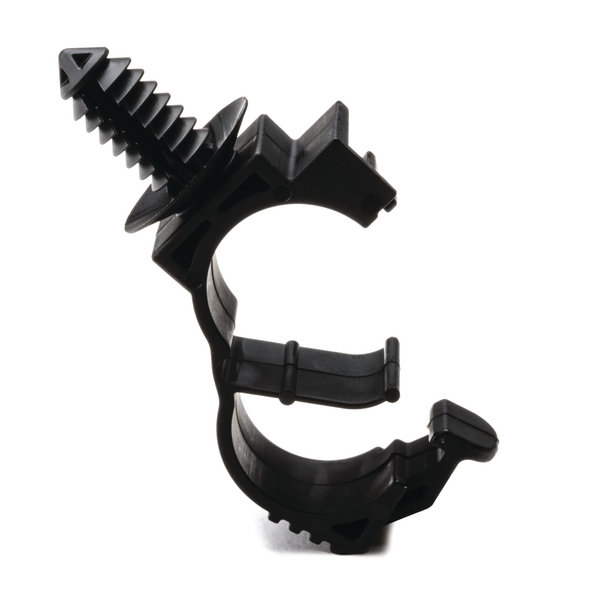

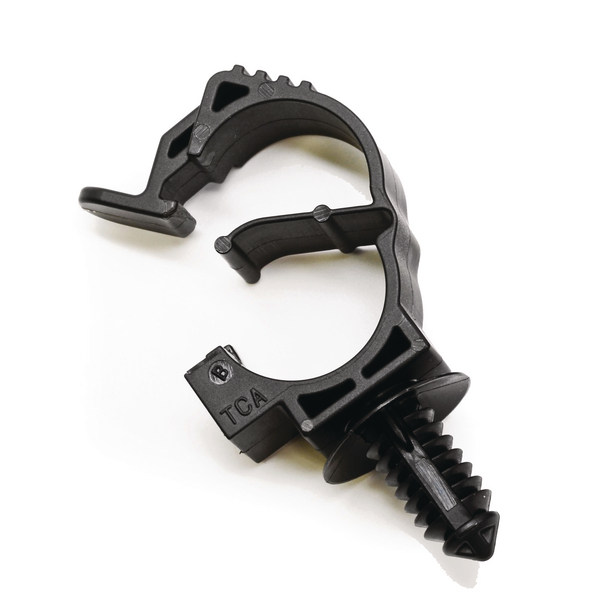

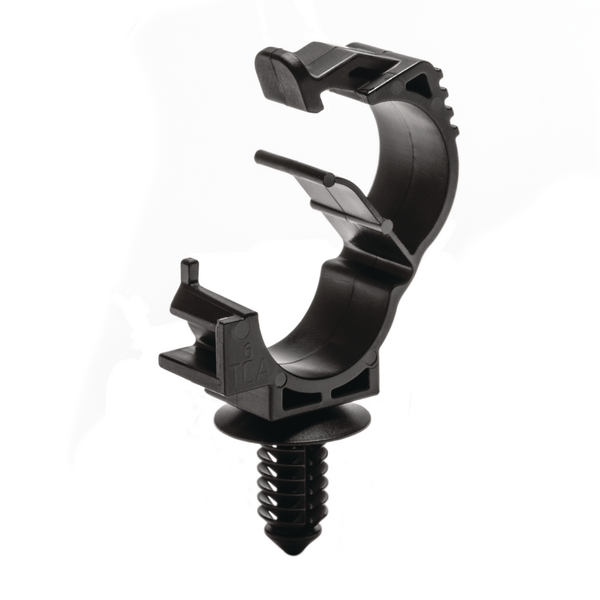

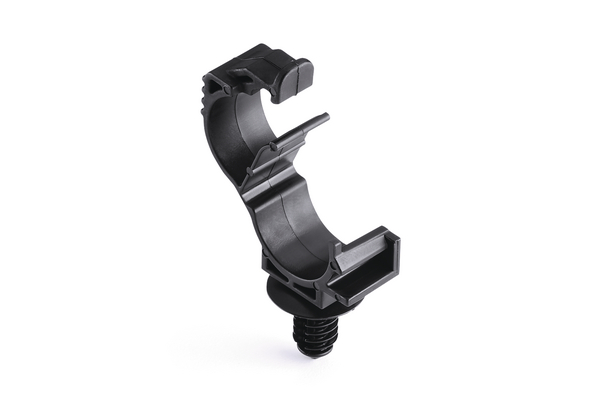

Harness Clip, close, round hole 6.35 mm (hexagonal)/6.1 - 6.9 mm, fir tree, high impact modified, heat and UV-stabilised, black
|
Product Dimensions |
| Bundle Diameter max (metric) |
14.0mm
|
| Bundle Diameter Nom. (ND) |
10.0 - 14.0 mm
|
| Bundle ∅ |
10.0-14.0mm
|
| Bundle ∅ min. |
10.0mm
|
| Depth (D) |
12.0mm
|
| for Hole ∅ (FH) |
6.1 - 6.6 mm (hexagonal), 6.1 - 7.0 mm
|
| for Panel Thickness min - max |
0.6 - 8.3 mm
|

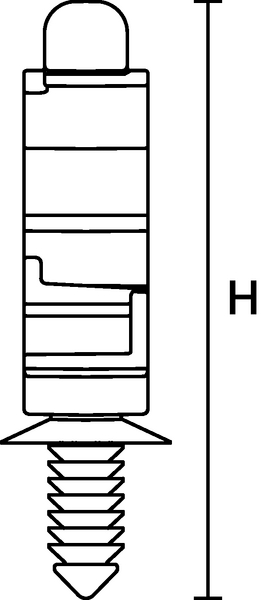

| Height (H) |
57.75mm
|

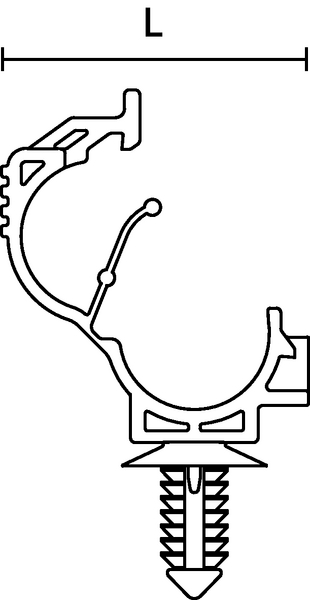

| Length (L) |
34.92mm
|
| Panel Thickness max. |
0.6 - 8.25mm
|
| Weight/Unit |
0.002889kg
|

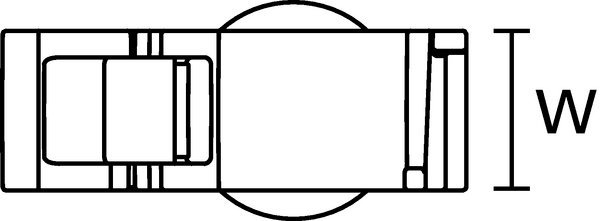

| Width (W) |
12.0mm
|
Specifications |
| CE Certification |
No
|
| CSA Certified |
No
|
| ELV compliant (Article 4 - 2) |
YES
|
| Flammability |
UL 94 HB
|
| Halogen-free |
Yes
|
| Hazardous Goods |
No
|
| Operating Temperature |
-40 °C to +105 °C
|
| Specifications |
|
| UL Listed (US and Canada) |
No
|
| UL Recognized (US) |
No
|
| UV-Stabilised |
Yes
|
Logistics and Packaging |
| Country of Origin |
MX
|
| Customs Number |
39269097
|
| GTIN-13 / EAN |
4031026465081
|
| Packaging 1 - Height (m) |
0.191m
|
| Packaging 1 - Length (m) |
0.506m
|
| Packaging 1 - Qty |
2000
|
| Packaging 1 - Type |
bag
|
| Packaging 1 - Volume (m³) |
0.02986m³
|
| Packaging 1 - Weight (kg) |
5.778001kg
|
| Packaging 1 - Width (m) |
0.309m
|
| Packaging 3 - Height (m) |
0.212725m
|
| Packaging 3 - Length (m) |
0.51435m
|
| Packaging 3 - Qty |
2000
|
| Packaging 3 - Type |
box
|
| Packaging 3 - Volume (m³) |
0.0347m³
|
| Packaging 3 - Weight (kg) |
6.398001kg
|
| Packaging 3 - Width (m) |
0.3175m
|
| Packaging 4 - Height (m) |
1.209m
|
| Packaging 4 - Length (m) |
1.2m
|
| Packaging 4 - Qty |
40000
|
| Packaging 4 - Type |
pallet
|
| Packaging 4 - Volume (m³) |
1.161m³
|
| Packaging 4 - Weight (kg) |
148.96kg
|
| Packaging 4 - Width (m) |
0.8m
|
More Information |
| ETIM 7.0 Key |
EC000464
|
| ETIM 8.0 Key |
EC000464
|
| ETIM 9.0 Key |
EC000464
|
| UNSPSC Key |
39121717
|
