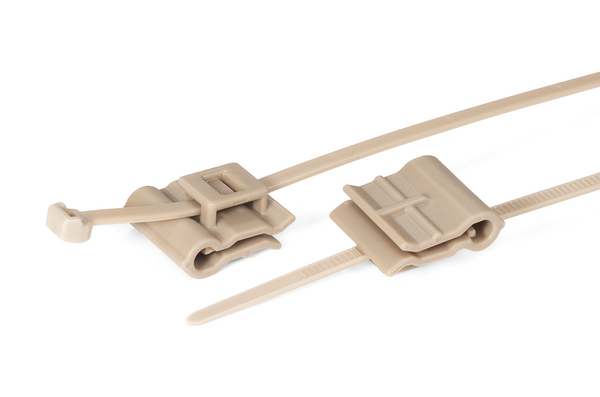

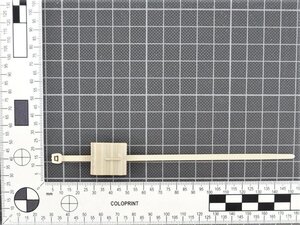

Fixing tie for edge, outside serrated, ∅4.0-32.0mm, beige, 1000pcs.
Art.-No. 156-04160
| PT2APEC1.2SP-PEEK/PEEKGF15-BGE
|
Details

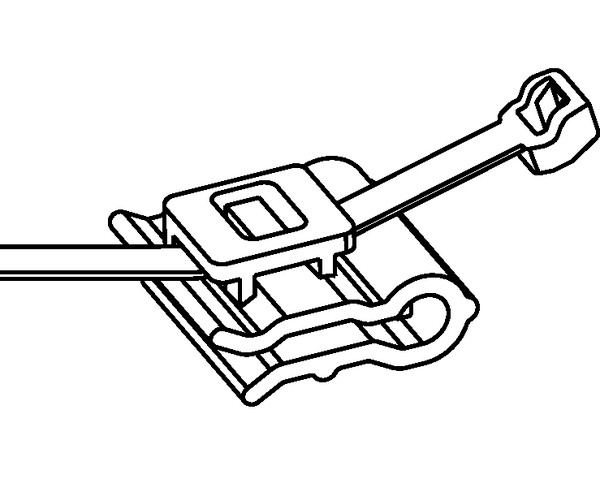

- Pre-assembled 2-piece fixing tie with EdgeClip
- Easy to assemble by hand
- Cable tie head can be moved after bundling
- For edges of 1.0 - 1.4 mm
- Secure fixing of the EdgeClip into drill hole
- Ideal for use wherever space is at its premium
More products in this product group:
| Application | Due to the tie's reduced installation height it is ideal for use wherever space is at a premium. |
| Colour | Beige (BGE) |
| Description | This EdgeClip is very easy to mount. The holding tab snaps into the drill hole very securely. You will hear and feel the connection being made during mounting. Cable ties from a variety of product series and varying in terms of their dimensions and materials can be used in conjunction with this fixing element. |
| Fixation Method | Edge Clips without metal insert |
| Foot Part | Polyetheretherketone (PEEK) |
| Identification Plate Position | none |
| Material | Polyetheretherketone (PEEK), Polyetheretherketone, glass-fibre reinforced (PEEKGF15) |
| PART DESCRIPTION | PT2APEC1.2SP-PEEK/PEEKGF15-BGE |

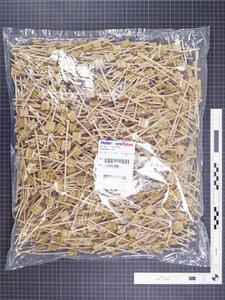

| Pack Cont. | 1000pcs. |
| Package Content packed in | bag |
| Product Family | for drill holes |
| Product Group | 2-Piece Fixing Ties for Edges, with Holes |
| Type | PT2APEC1.2SP |
| Variant | Outside Serrated |
| Bundle Diameter max (metric) | 32.0mm |
| Bundle ∅ | 4.0-32.0mm |
| Bundle ∅ min. | 4.0mm |
| Height (H) | 10.5mm |
| Length (L) | 145.0mm |
| Length (L2) | 21.4mm |
| Min.Tensile Strength | 230N |
| Panel Thickness max. | 1.0 - 1.4mm |
| Weight/Unit | 0.002733kg |
| Width (W) | 3.4mm |
| Width (W2) | 19.0mm |
| for Hole ∅ (FH) | 5.8 - 6.2 mm |
| for Panel Thickness min - max | 1 - 1.4 mm |
Download
|
|
|
| Country of Origin | PL |
| Customs Number | 39269097 |
| GTIN-13 / EAN | 4031026679952 |
| Packaging 1 - Height (m) | 0.075m |
| Packaging 1 - Length (m) | 0.55m |
| Packaging 1 - Qty | 1000 |
| Packaging 1 - Type | bag |
| Packaging 1 - Volume (m³) | 0.0198m³ |
| Packaging 1 - Weight (kg) | 2.776597kg |
| Packaging 1 - Width (m) | 0.48m |
| Packaging 3 - Height (m) | 0.368m |
| Packaging 3 - Length (m) | 0.584m |
| Packaging 3 - Type | box |
| Packaging 3 - Volume (m³) | 0.083m³ |
| Packaging 3 - Width (m) | 0.386m |
| Packaging 4 - Length (m) | 1.2m |
| Packaging 4 - Type | pallet |
| Packaging 4 - Width (m) | 0.8m |
