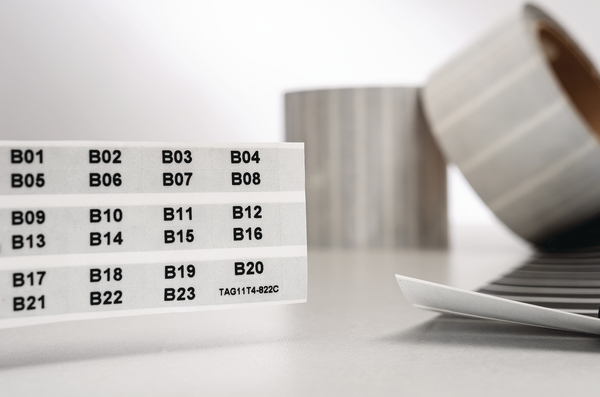

Label, transparent, thermal transfer print, 5.08x16.5mm, 5000pcs.
Art.-No. 596-00003 | TAG11T4-822C-CL |  Details

Clear polyester is glossy, allowing for the highest resolution and print contrast.

    • Very clear and detailed image for use with graphics, single or sequential characters and especially barcodes
    • Smear-resistant, ultraviolet-resistant and chemical-resistant marking
    Add to watchlist
    Downloads
    Application The use of our specially formulated adhesive labels printed on thermal transfer printers give the highest quality print clarity. The range of materials are complemented by ribbons developed to suit the needs of most users. The production of labels is very simple. All that is needed is the required label to be selected from our industry leading software TagPrint Pro.
    Colour Transparent (CL)
    Key product features weather resistant, chemical resistance
    Material Type 822C, Clear Polyester (822C)
    PART DESCRIPTION TAG11T4-822C-CL
    Pack Cont. 5000pcs.
    Package Content packed in reel
    Product Family Thermal Transfer Labels
    Product Group Adhesive Labels
    Type TAG11T4
    H printable 5.08mm
    HR 0.65"
    HR 16.5mm
    Height (H) 5.08mm
    Print Method thermal transfer print
    Thickness (T) 64.0µm
    VR 12.7mm
    VR 0.50"
    Weight/Unit 0.8kg
    Width (W) 16.5mm
    Width of LIner (WL) 2.60"
    Width of Liner (WL) 66.04mm
    Adhesive Acrylic
    Adhesive Operating Temperature -46 °C to +93 °C
    CE Certification No
    CSA Certified No
    Curing Temperature +10 °C
    ELV compliant (Article 4 - 2) YES
    Halogen-free No
    Hazardous Goods No
    Operating Temperature -40 °C to +150 °C
    ROHS compliant Yes
    Specifications UL-Recognized
    Specifications
    UL Listed (US and Canada) No
    UL Listed (US and Canada) No
    UL Recognized (US and Canada) Yes
    UL Recognized (US and Canada) Yes
    UL-File Number MH18396
    UV-Stabilised No
    Country of Origin US
    GTIN-13 / EAN 4031026727059
    Labels per Column 1
    Labels per Row 4
    Packaging 1 - Height (m) 0.148m
    Packaging 1 - Length (m) 0.105m
    Packaging 1 - Qty 1
    Packaging 1 - Type bag
    Packaging 1 - Volume (m³) 0.00163m³
    Packaging 1 - Weight (kg) 0.8kg
    Packaging 1 - Width (m) 0.105m
    ETIM 7.0 Key EC001288
    ETIM 8.0 Key EC001288
    ETIM 9.0 Key EC001288
    UNSPSC Key 55121612
