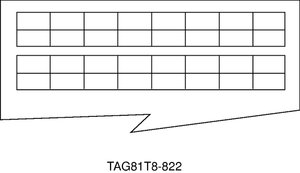

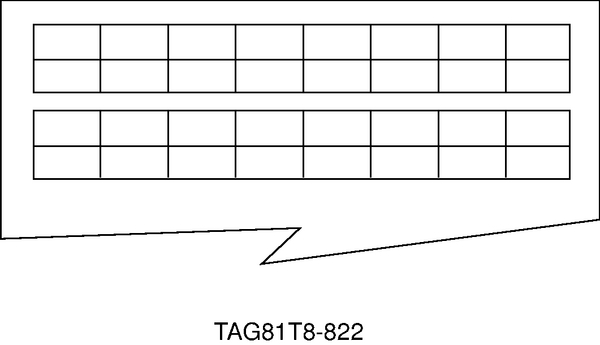

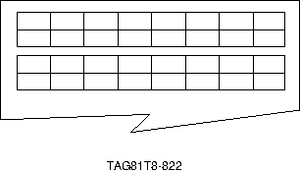

Label, white, thermal transfer print, 5.08x8.25mm, 5000pcs.
Art.-No. 596-00022
| TAG81T8-822-WH
|
Details
- Very clear and detailed image for use with graphics, single or sequential characters and especially barcodes
- Smear-resistant, ultraviolet-resistant and chemical-resistant marking
More products in this product group:
| Application | The use of our specially formulated adhesive labels printed on thermal transfer printers give the highest quality print clarity. The range of materials are complemented by ribbons developed to suit the needs of most users. The production of labels is very simple. All that is needed is the required label to be selected from our industry leading software TagPrint Pro. |
| Chem. Material Properties | Resistant to water, soft acids, bases, salts and most petroleum oils, greases, aliphatic solvents such as kerosene, kaptan and fuels. |
| Colour | White (WH) |
| Key product features | weather resistant, chemical resistance |
| Material | Type 822, Polyester (822) |
| PART DESCRIPTION | TAG81T8-822-WH |
| Pack Cont. | 5000pcs. |
| Package Content packed in | reel |
| Product Family | Thermal Transfer Labels |
| Product Group | Adhesive Labels |
| Type | TAG81T8 |
|
|
| Bundle Diameter max (metric) | 7.37mm |
| Bundle ∅ | 3.50-7.37mm |
| Bundle ∅ min. | 3.50mm |
| H printable | 5.08mm |
| HR | 8.25mm |
| HR | 0.32" |
| Height (H) | 5.08mm |
| Print Method | thermal transfer print |
| Thickness (T) | 64.0µm |
| Thickness of Foil | 152.4 |
| VR | 8.25mm |
| VR | 0.32" |
| Width (W) | 8.25mm |
| Width of LIner (WL) | 2.60" |
| Width of Liner (WL) | 66.04mm |
Download
| Adhesive | Acrylic |
| Adhesive Operating Temperature | -40 °C to +90 °C, (+160 °C, for 200 h) |
| CE Certification | No |
| CSA Certified | No |
| Curing Temperature | +10 °C |
| Halogen-free | Yes |
| Operating Temperature | -40 °C to +150 °C |
| ROHS compliant | Yes |
| Specifications |
|
| Specifications | UL-Recognized |
| UL Listed (US and Canada) | No |
| UL Listed (US and Canada) | No |
| UL OCD link | Link Link |
| UL Recognized (US and Canada) | Yes |
| UL Recognized (US and Canada) | Yes |
| UL-File Number | MH18396 |
| UV-Stabilised | No |
