23/11/2024

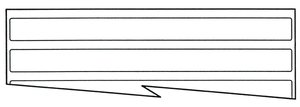

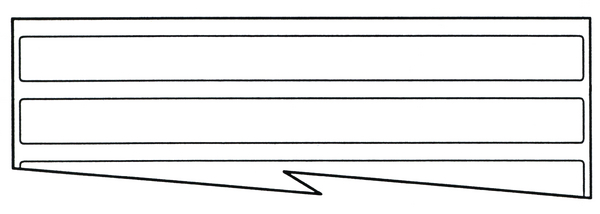

Label, white, thermal transfer print, 7.52x101.6mm, H2=7.92mm, 5000pcs.
Art.-No. 596-00023 | TAG83T1-822-WH |  Details

    • Very clear and detailed image for use with graphics, single or sequential characters and especially barcodes
    • Smear-resistant, ultraviolet-resistant and chemical-resistant marking
    Add to watchlist
    Downloads
    Application The use of our specially formulated adhesive labels printed on thermal transfer printers give the highest quality print clarity. The range of materials are complemented by ribbons developed to suit the needs of most users. The production of labels is very simple. All that is needed is the required label to be selected from our industry leading software TagPrint Pro.
    Colour White (WH)
    Key product features weather resistant, chemical resistance
    Material Type 822, Polyester (822)
    PART DESCRIPTION TAG83T1-822-WH
    Pack Cont. 5000pcs.
    Package Content packed in reel
    Product Family Thermal Transfer Labels
    Product Group Adhesive Labels
    Type TAG83T1
    H printable 7.52mm
    HR 101.6mm
    HR 4.0"
    Height (H) 7.52mm
    Height (H2) 7.92mm
    Print Method thermal transfer print
    Thickness (T) 64.0µm
    VR 11.13mm
    VR 0.44"
    Width (W) 101.6mm
    Width of LIner (WL) 4.10"
    Width of Liner (WL) 104.14mm
    Adhesive Acrylic
    Adhesive Operating Temperature -40 °C to +90 °C, (+160 °C, for 200 h)
    CE Certification No
    CSA Certified No
    Curing Temperature +10 °C
    Halogen-free Yes
    Operating Temperature -40 °C to +150 °C
    ROHS compliant Yes
    Specifications
    Specifications UL-Recognized
    UL Listed (US and Canada) No
    UL Listed (US and Canada) No
    UL OCD link Link Link
    UL Recognized (US and Canada) Yes
    UL Recognized (US and Canada) Yes
    UL-File Number MH18396
    UV-Stabilised No
    Country of Origin US
    GTIN-13 / EAN 4031026727141
    Labels per Column 1
    Labels per Row 1
    Packaging 1 - Weight (kg) 0.68kg
    ETIM 7.0 Key EC001288
    ETIM 8.0 Key EC001288
    ETIM 9.0 Key EC001288
    UNSPSC Key 55121612
