Label, white, thermal transfer print, 6.35x48.26mm, H2=6.35mm, 5000pcs.
Art.-No. 596-00026 | TAG96T1-336-WH |  Details

White polyester is glossy, allowing for the highest resolution and print contrast.

    • Very clear and detailed image for use with graphics, single or sequential characters and especially barcodes
    • Smear-resistant, ultraviolet-resistant and chemical-resistant marking
    Add to watchlist
    Downloads

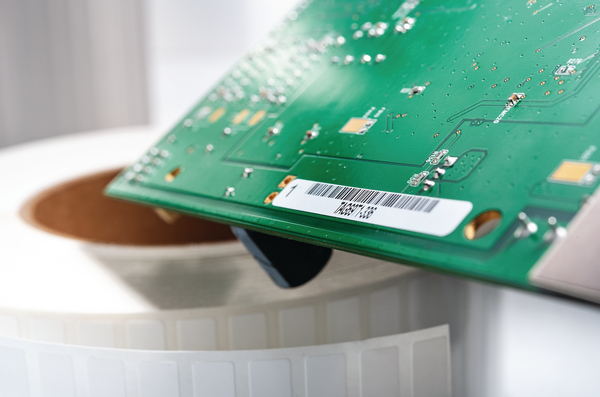

    Application The use of our specially formulated adhesive labels printed on thermal transfer printers give the highest quality print clarity. The range of materials are complemented by ribbons developed to suit the needs of most users. The production of labels is very simple. All that is needed is the required label to be selected from our industry leading software TagPrint Pro.
    Colour White (WH)
    Key product features weather resistant, chemical resistance
    Material Type 336, Polyester (336)
    PART DESCRIPTION TAG96T1-336-WH
    Pack Cont. 5000pcs.
    Package Content packed in reel
    Product Family Thermal Transfer Labels
    Product Group Adhesive Labels
    Type TAG96T1
    H printable 6.35mm
    HR 48.2mm
    HR 1.9"
    Height (H) 6.35mm
    Height (H2) 6.35mm
    Print Method thermal transfer print
    Thickness (T) 64.0µm
    VR 9.35mm
    VR 0.375"
    Width (W) 48.26mm
    Width of LIner (WL) 2.0"
    Width of Liner (WL) 50.8mm
    Adhesive Acrylic
    Adhesive Operating Temperature -40 °C to +90 °C, (+160 °C, for 200 h)
    CE Certification No
    CSA Certified No
    Curing Temperature +10 °C
    Halogen-free Yes
    Operating Temperature -40 °C to +150 °C
    ROHS compliant Yes
    Specifications
    Specifications UL-Recognized
    UL Listed (US and Canada) No
    UL Listed (US and Canada) No
    UL OCD link Link Link
    UL Recognized (US and Canada) Yes
    UL Recognized (US and Canada) No
    UL-File Number MH16736
    UV-Stabilised No
    Country of Origin US
    GTIN-13 / EAN 4031026727158
    Labels per Column 1
    Labels per Row 1
    Packaging 1 - Weight (kg) 0.68kg
    ETIM 7.0 Key EC001288
    ETIM 8.0 Key EC001288
    ETIM 9.0 Key EC001288
    UNSPSC Key 55121612
