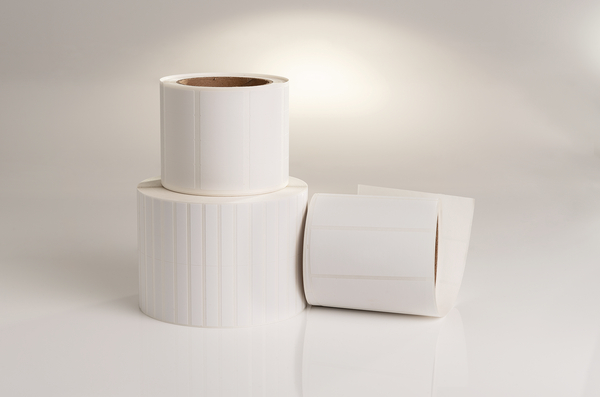

Label, white, thermal transfer print, 19.05x38.1mm, H2=19.05mm, 3000pcs.
Art.-No. 596-27822 | TAG27T1-822-WH |  Details

    • Very clear and detailed image for use with graphics, single or sequential characters and especially barcodes
    • Smear-resistant, ultraviolet-resistant and chemical-resistant marking
    Add to watchlist
    Downloads
    Application White Polyester Splice Enclosure Label (For Flat Surfaces Only)
    Colour White (WH)
    Key product features weather resistant, chemical resistance
    Material Type 822, Polyester (822)
    PART DESCRIPTION TAG27T1-822-WH
    Pack Cont. 3000pcs.
    Package Content packed in reel
    Product Family Thermal Transfer Labels
    Product Group Adhesive Labels
    Type TAG27T1
    H printable 19.05mm
    HR 1.50"
    HR 38.1mm
    Height (H) 19.05mm
    Height (H2) 19.05mm
    Print Method thermal transfer print
    Thickness (T) 64.0µm
    VR 22.2mm
    VR 0.875"
    Width (W) 38.1mm
    Width of LIner (WL) 2.2"
    Width of Liner (WL) 55.88mm
    Adhesive Acrylic
    Adhesive Operating Temperature -40 °C to +150 °C
    CE Certification No
    CSA Certified No
    Curing Temperature +10 °C
    Halogen-free Yes
    Operating Temperature -40 °C to +150 °C
    ROHS compliant Yes
    Specifications
    Specifications UL-Recognized
    UL Listed (US and Canada) No
    UL Listed (US and Canada) No
    UL OCD link Link Link
    UL Recognized (US and Canada) Yes
    UL Recognized (US and Canada) Yes
    UL-File Number MH18396
    UV-Stabilised No
    Country of Origin US
    GTIN-13 / EAN 4031026175768
    Labels per Column 1
    Labels per Row 1
    Packaging 1 - Weight (kg) 0.68kg
    Packaging 3 - Qty 3000
    ETIM 7.0 Key EC001288
    ETIM 8.0 Key EC001288
    ETIM 9.0 Key EC001288
    UNSPSC Key 55121612
