Label, white, thermal transfer print, 6.35x6.35mm, 10000pcs.
Art.-No. 596-70822 | TAG70T12-822-WH |  Details

    • Very clear and detailed image for use with graphics, single or sequential characters and especially barcodes
    • Smear-resistant, ultraviolet-resistant and chemical-resistant marking
    Add to watchlist
    Downloads
    Application The use of our specially formulated adhesive labels printed on thermal transfer printers give the highest quality print clarity. The range of materials are complemented by ribbons developed to suit the needs of most users. The production of labels is very simple. All that is needed is the required label to be selected from our industry leading software TagPrint Pro.
    Colour White (WH)
    Key product features weather resistant, chemical resistance
    Material Type 822, Polyester (822)
    PART DESCRIPTION TAG70T12-822-WH
    Pack Cont. 10000pcs.
    Package Content packed in reel
    Product Family Thermal Transfer Labels
    Product Group Adhesive Labels
    Type TAG70T12
    H printable 6.35mm
    HR 0.25"
    HR 6.4mm
    Height (H) 6.35mm
    Print Method thermal transfer print
    Thickness (T) 64.0µm
    VR 12.7mm
    VR 0.50"
    Weight/Unit 0.0005kg
    Width (W) 6.35mm
    Width of LIner (WL) 3.2"
    Width of Liner (WL) 81.28mm
    Adhesive Acrylic
    Adhesive Operating Temperature -40 °C to +150 °C
    CE Certification No
    CSA Certified No
    Curing Temperature +10 °C
    ELV compliant (Article 4 - 2) YES
    Halogen-free Yes
    Hazardous Goods No
    Operating Temperature -40 °C to +150 °C
    ROHS compliant Yes
    Specifications UL-Recognized
    Specifications
    UL Listed (US and Canada) No
    UL Listed (US and Canada) No
    UL OCD link Link Link
    UL Recognized (US and Canada) Yes
    UL Recognized (US and Canada) Yes
    UL-File Number MH18396
    UV-Stabilised No
    Country of Origin US
    Customs Number 39199080
    GTIN-13 / EAN 4031026175799

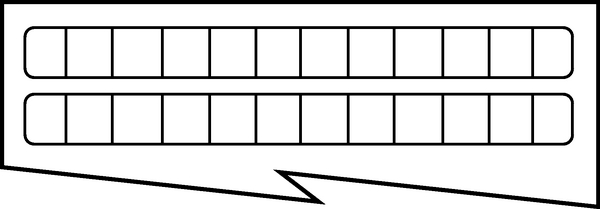

    Labels per Column 1
    Labels per Row 12
    Packaging 3 - Qty 10000
    Packaging 3 - Type carton
    Packaging 3 - Weight (kg) 5.0kg
    ETIM 7.0 Key EC001288
    ETIM 8.0 Key EC001288
    ETIM 9.0 Key EC001288
    UNSPSC Key 55121612
