RELICON cable joints are suitable for universal application as branch or straight through joints in low-voltage electrical installations. They are the cable jointing product of choice of energy supply companies, industry and the electrical trade for permanently connecting cables buried in the ground.
Cable jointing is a necessary part of daily life for electrical engineers, and high expectations are placed on the end result. A cable joint protects cables against moisture ingress, dust and penetration by foreign objects.

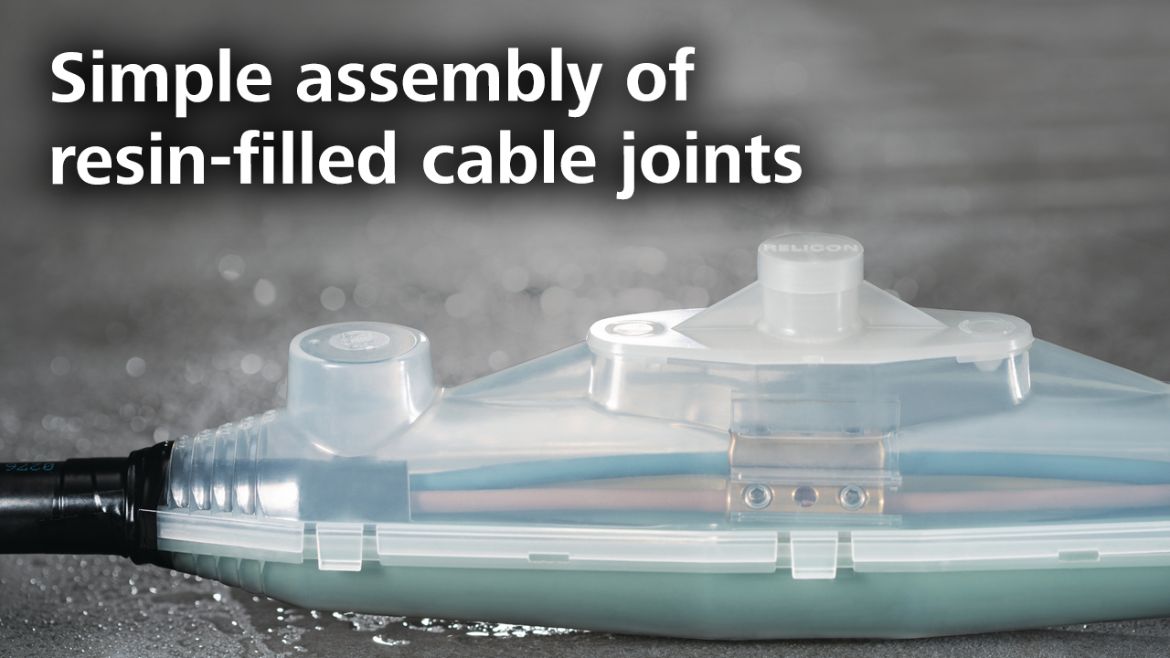

RELICON cast resin joints reliably protect your cable connections - even under extreme conditions. Learn more here in this video:
RELICON cable joints are longitudinally and laterally waterproof. The sets are available in various sizes as straight through i-Line joints and also as Y-Line and T-Line branch joints or PA parallel branch joints. They can be used for cable jointing underground, under water or in installation ducts, for example for connecting buildings to the mains supply.
RELICON cable joints are resistant to environmental influences and are non-toxic. HellermanTyton offers polyurethane and epoxy-based resins (eg PUR 33 cast resin and EP 64 epoxy resin) in its product range. These are suitable for the majority of cable jointing requirements in low voltage systems.
Our optimised "Safe Filling" (SF) system ensures that, the installer is protected from coming into contact with the cast resin components whilst they are mixed and the joint sleeve is filled. This means that working with RELICON resin cable joint kits is always a safe, clean and efficient process.
The transparent cast resin bag is connected to the moulding sleeve by means of a filling nozzle and an adapter so that the cast resin mixture can be poured easily. The excellent flow properties of our cast resins make pouring simple and the transparent material used for the cable sleeve guarantees optimum visual control of the filling process at all times.
A ring in the cast resin pouch makes it easy to position and connect the special SF filling nozzle. After it is securely attached to the mixture bag with an adapter ring, the nozzle can be inserted securely into the opening of the upper joint Shell.
Step 1: Remove the transparent two-chamber pouch from the aluminium-lined bag.
Step 2: Open the cold seal between the resin and hardener component by squeezing.
Step 3: Mix the two components thoroughly by kneading the pouch.
Step 4: The patented colour change indicates when the components are homogenously mixed.
Step 5: Press the nozzle firmly onto the adapter ring.
Step 6: The nozzle fits securely in the top of the shell and makes bubble-free pouring of the cast resin possible.

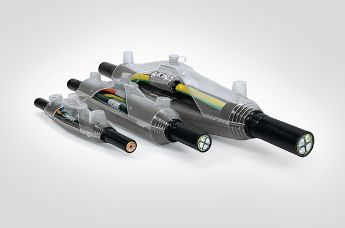

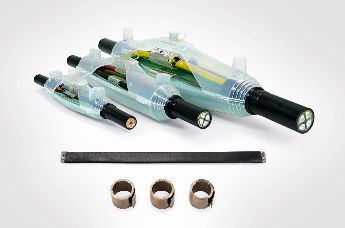

RELICON i-Line straight-through joints are made for cable jointing in low voltage electrical networks. i-Line cast resin joints are suitable for jointing on polymeric cables and wires made of PVC, XLPE, PE, EPR and utility cables.
Applications: cable jointing in industrial buildings, power supply in the ground, outdoors and underwater.
RELICON F-Line cable joints can be used to repair and connect flexible low voltage cables made of PVC, PUR, EPR like H05RR-F, H07RN-F, etc.
Applications: cable drums, underground, submerged, outdoors, indoors and in wiring ducts.
RELICON T-Line and Y-Line branch joints are suitable for cable jointing in low voltage electrical networks. These cable joint kits can be used on polymeric cables and wires made of PVC, XLPE, PE, EPR and utility cables. Applications: connections in industrial buildings, power supply in the ground, outdoors and in the water.

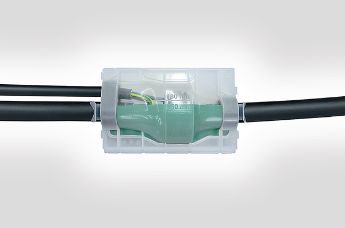

PA-11 58/230, PA-12 75/300 and PA-13 95/420 are universal straight-through and branch cable joints. They can be filled with either Reliflex cast resin (non-labelled) or PUR 33 cast resin. Depending on the connector, they can be used for single- and double branches. They are suitable for jointing on polymeric cables and wires made of PVC, XLPE, PE, EPR and utility cables. Applications: low voltage electrical networks as well as for signal and communication cables; for power supply lines for outdoor lighting and for cable repairs; underground, submerged, outdoors, indoors and in wiring ducts.
PAH-1 120/290, PAH-2 130/300, PAH-3 135/360 and PAH-4 140/420 are universal straight-through and branch cable joints. PAH-2, PAH-3 and PAH-4 can also be filled with either Reliflex cast resin (non-labelled) or PUR 33 cast resin. They can be applied as single branch joints with commercial branch clamping rings on polymeric cables and wires made of PVC, XLPE, PE, EPR and utility cables. Applications: low voltage electrical networks branch joints for connecting building; underground, submerged, outdoors, indoors.
The RELICON PUR 33 cast resin is designed for the electrical insulation and mechanical protection of cable connections in low voltage electrical networks. It is also suitable as mechanical and moisture protection in medium voltage cable jointing scenarios. Applications: for indoor and outdoor use.
The RELICON PUR 66 cast resin is ideal for the electrical insulation and mechanical protection of cable connections in medium voltage electrical networks. Applications: indoors and outdoors.
The RELICON PUR 44 Flex cast resin has unique elastic properties and is perfect for the professional repair of flexible cable connections in low voltage range.
Application: for indoor and outdoor use.
The RELICON EP 64 epoxy cast resin is suitable for cable jointing for use in electrical installations as well as in the chemical and oil refining industry. Applications: indoor and outdoor use on low and medium voltage cables.
The RELICON EP 20 epoxy resin is cold curing and highly impact resistant. The low exothermic reaction makes it possible to cast large volumes. Applications: indoors and outdoors.
The RELICON Reliflex cast resin is a non-toxic (non-labelled) cold casting compound based on hydrocarbon resins. This extremely hydrophobic resin has been created for electrical insulation and moisture protection in demanding cable jointing scenarios. Applications: for wet or damp indoor and outdoor environments.
The RELICON PUR DS polyurethane resin is a thixotropic, universal two-component polyurethane sealing mastic. PUR DS is ideal for sealing wall feed-throughs as well as other filling and sealing applications.
