Alpha Snap Faceplates
Art.-Nr. 854-35202 | ASFP01/WH |  Details

The single-gang face plates accepts 2 single modules or 1 triple module, to offer 2 or 3 RJ45 ports

    • Strong, durable ABS plastic
    • Accepts up to 2 Alpha Snap Outlets in a single gang
    • Offers extra 10mm depth to the back box
    • Available in White, Black or Grey
    • Supplied with fixing screws
    Show more
    Add to watchlist

    Request your individual offer now

     Request quote
    Colour White (WH)

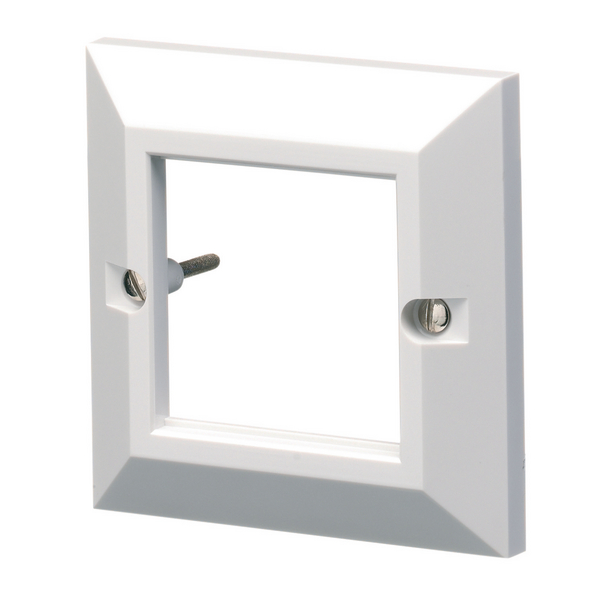

    Description The bevelled double faceplate accepts 2 single Alpha Snap modules or 1 triple Alpha Snap module. The Alpha Snap face plate is made from white ABS plastic which is fire retardant and completes any installation with a professional look.
    PART DESCRIPTION ASFP01/WH
    Pack Cont. 20pcs.
    Package Content packed in box
    Product Family Single Gang Bevelled
    Product Group Alpha Snap Faceplates
    Type ASFP01/WH
    Depth (D) 15mm
    Gang Size single gang
    Height (H) 87mm
    Width (W) 87mm
    ELV compliant (Article 4 - 2) YES
    Country of Origin GB
    Customs Number 85389099
    Dimensions W x H x D 87 mm x 87 mm x 15 mm
    GTIN-13 / EAN 4031026266107
    Packaging 1 - Qty 1
    Packaging 1 - Weight (kg) 0.1kg
    Packaging 2 - Qty 0
    Packaging 3 - Qty 0
    Packaging 4 - Qty 0
    ETIM 7.0 Key EC000000
    ETIM 8.0 Key EC000000
    ETIM 9.0 Key EC000000
