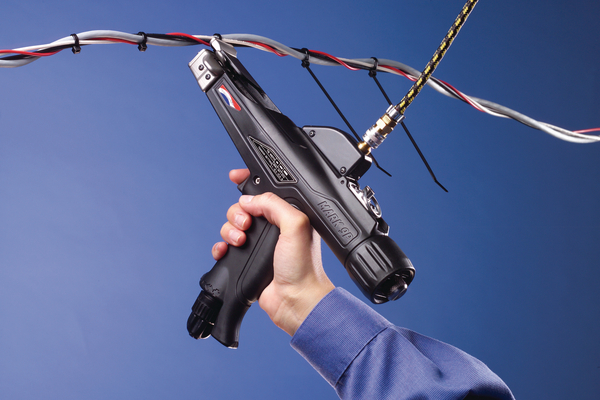

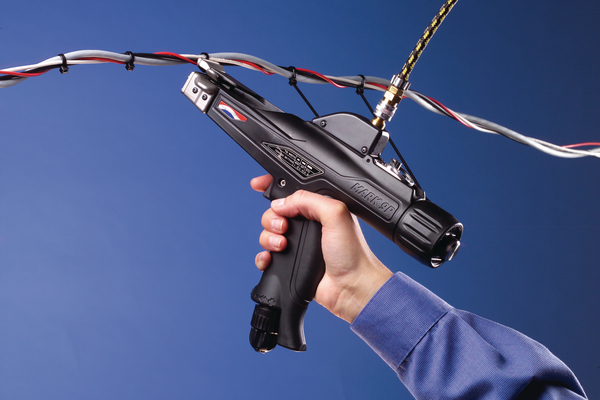

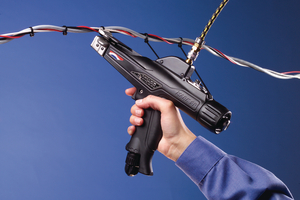

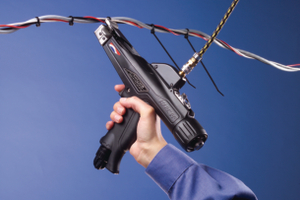

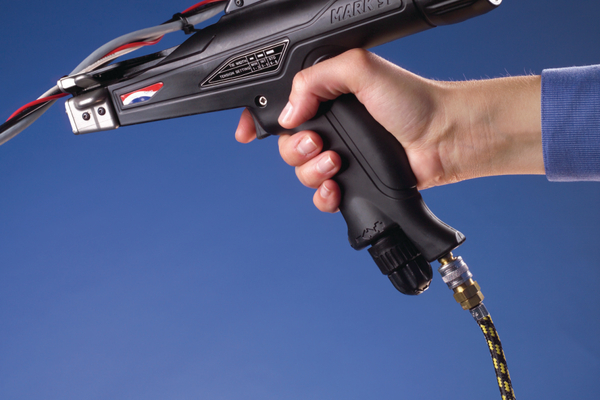

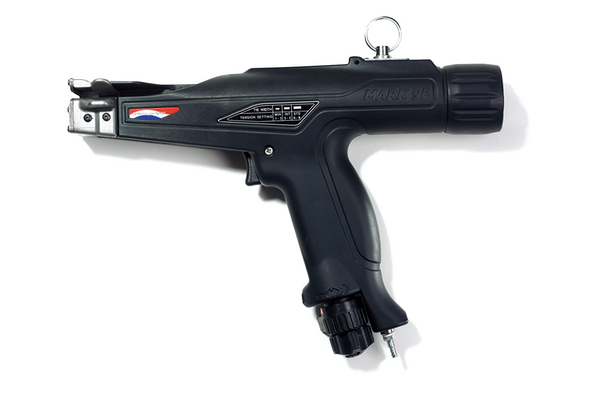

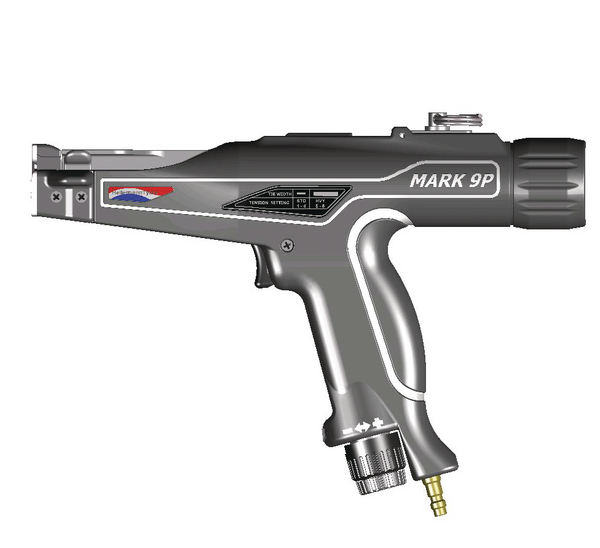

Cable tie tool for 4.6-13.5mm, pneumatic, 1.057kg, black
Art.-Nr. 110-09110
| MK9P w/ Upper air-PA66GF30-BK
|
Details
- Pneumatic tensioning tool
- Glass-fibre-reinforced housing
- For cable ties up to 13.5 mm width
- For consistent tensioning and automatically flush cutting
- Infinitely adjustable tension force
- High application speed
- Holding ring for a balancer
- Optional with lower or upper air attachment
Request your individual offer now
Request quote
More products in this product group:
| Application | The MK9 P is constructed with heavy duty parts to ensure optimum performance. It is ideally designed to apply heavy-duty ties like they are used in vehicle construction like trucks, busses and railways. |
| Air Pressure (min.) | 3Bar |
| Air Pressure Psi (max.) | 90Psi |

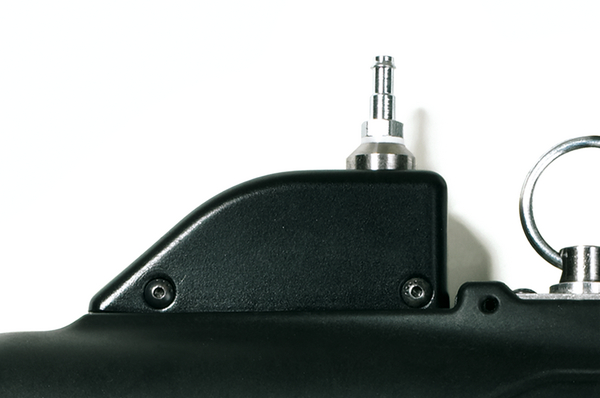

| Air att. Position | top air connection |
| Colour | Black (BK) |
| Description | MK9P |
| For Cable Tie Width | 4.6-13.5mm |
| Material | Polyamide 6.6, glass-fibre reinforced (PA66GF30) |
| Number of cycles | 1000000 |
| Operation | pneumatic |
| PART DESCRIPTION | MK9P w/ Upper air-PA66GF30-BK |
| Pack Cont. | 1pc. |
| Package Content packed in | carton |
| Product Family | MK9P up to 13.5 mm strap width |
| Product Group | Pneumatic tensioning tool plastic housing |
| Short Description | Pneumatic Tensioning Tool up to 13.5 mm strap width |
| Strap Thickness max. | 2.5 |
| Tool property | Automatic cut off |
| Tool suitable cable tie material | Plastic |
| Type | MK9P w/ Upper air |
| for Air Pressure min - max | 3 - 6 Bar |
Download
| Country of Origin | US |
| Customs Number | 84671900 |
| Dimensions W x H x D | 55 mm x 200 mm x |
| GTIN-13 / EAN | 4031026254579 |
| Packaging 1 - Height (m) | 0.06m |
| Packaging 1 - Length (m) | 0.37m |
| Packaging 1 - Qty | 1 |
| Packaging 1 - Type | carton |
| Packaging 1 - Volume (m³) | 0.00666m³ |
| Packaging 1 - Weight (kg) | 1.557kg |
| Packaging 1 - Width (m) | 0.3m |
| Packaging 3 - Height (m) | 0.06m |
| Packaging 3 - Length (m) | 0.36m |
| Packaging 3 - Qty | 1 |
| Packaging 3 - Type | carton |
| Packaging 3 - Volume (m³) | 0.0065m³ |
| Packaging 3 - Weight (kg) | 1.557kg |
| Packaging 3 - Width (m) | 0.3m |
MK9P
110-09101
SP MK9P replacement blade
110-09111
MK9P
110-09112
MK9PHTJ
110-95360
