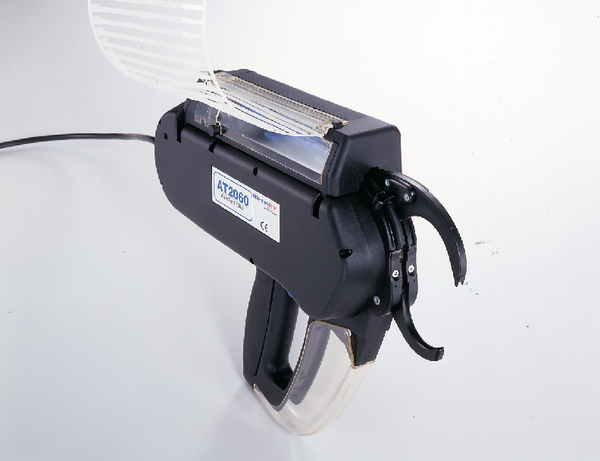

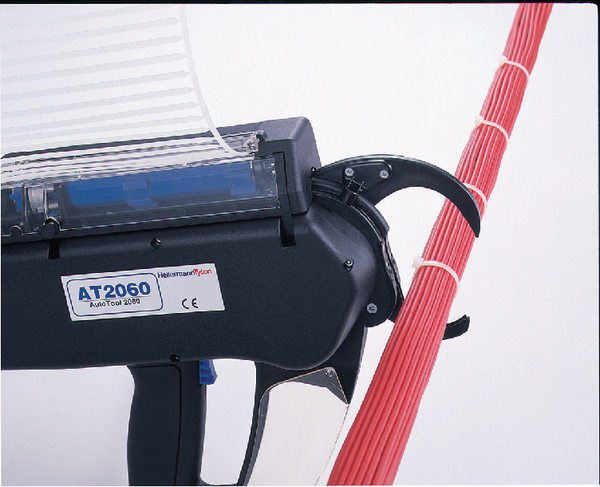

Automatic cable tie tool Dmax=31.75mm, for 3.6mm, 1.8kg, black
Art.-Nr. 103-00000
| AT2060-MET/PL-BK
|
Details
- Fast: Cable ties are installed quickly with one easy trigger depression, increasing productivity while decreasing labor costs.
- Reliable: HellermannTyton's automatic cable tie systems have been tested to perform extremely consistently, without interruption to workflow.
- Ergonomic: The ergonomic design of the automatic cable tie tool systems feature a comfortable grip, low weight, and easy trigger depression to reduce installer effort and strain while installing cable ties.
- Providing Valuable Operator Feedback: Equipped with a self diagnostic LCD information screen, the automatic cable tie system easily guides the user through the cycles of cable tie installations.
- Flexible Manufacturing Versatility: HellermannTyton's cable tie tool systems support principles of flexible manufacturing requirements and environments. This system can be used in handheld, bench mount, and overhead assembly configurations. The versatile overhead assembly option provides the ultimate integration into the customer's manufacturing area. HellermannTyton's autotool AT2060 is powered by a standard 110 AC 27V electrical outlet that the power supply converts to a low DC voltage for the tool.
- Uniform Fastening Quality: HellermannTyton's automatic cable tie systems feature adjustable tension control to deliver consistent levels of cable tie fastening.
- Range: HellermannTyton offers the widest range of automatic cable tie tool systems which cover cable tie tensile strengths of 18, 30 and 50 pounds with bundle diameters between 1/16" to over 3".
Request your individual offer now
Request quote
More products in this product group:
| Application | Harness binding |
| Colour | Black (BK) |
| For Cable Tie Width | 0.14 - 0.14" |
| For Cable Tie Width | 3.6 - 3.6mm |
| For Ties | T30RA30, T30RA3000 |
| Material | Metal (MET), Plastic (PL) |
| Operation | electrical |
| PART DESCRIPTION | AT2060-MET/PL-BK |
| Pack Cont. | 1pc. |
| Package Content packed in | case |
| Power Supply unit | 85-265 VAC |
| Product Family | AT2060 Auto Tool |
| Product Group | Automatic Cable Tying Systems |
| Tool suitable cable tie material | Plastic |
| Type | AT2060 |
| Bundle Diameter max (metric) | 31.75mm |
| Bundle ∅ | 1.50-31.75mm |
| Bundle ∅ min. | 1.50mm |
| Cycle Time | 1.2s |
| Height (H) | 269.7mm |
| Length (L) | 361.2mm |
| Operational Voltage | 27 |
| Pawl Travel Stroke | 1.25" |
| Pawl Travel Stroke | 3.175cm |
| Power Supply | Electrical with Power Pack |
| Strap Width max. | 3.6mm |
| Strap Width max. (G) | 0.14" |
| Strap Width max. (G) | 3.6mm |
| Tension Setting | Adjustable |
| Weight/Unit | 1.8kg |
| Width (W) | 66.4mm |
Download
T30RA30
103-00041
T30RA3000
103-00042
