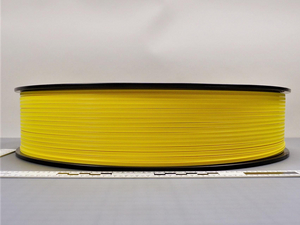

Cable tie for autotools, on reel, 500mx4.5mm, Dmin=0.0mm, Dmax=100.0mm, yellow, 500m
Art.-Nr. 102-66113
| Strap_Yellow_ATS-PA66HIRHSW-YE
|
Details
- Innovative two-piece consumables: closure and strap
- Outside serrated strap protects the bundle
- Available on reels of 500 m strap and 5,000 pcs. closures
Request your individual offer now
Request quote
More products in this product group:
| Application | The outside serrated strap is perfectly suitable for sensitive surfaces and can be used for bundling and fixing of cables, pipes and hoses, as well as for bag sealing. The materials are particularly appropriate for high volume bundling applications in cable assembly, automotive, industrial and packaging applications. |
| Application Method | Strap and closures have to be applied with the electrically operated automatic cable tying Autotool System ATS from HellermannTyton. The cycle time is 1.3 sec. |
| Colour | Yellow (YE) |
| Description | Strap Yellow ATS |
| Identification Plate Position | none |
| Material | Polyamide 6.6, high impact modified, heat and UV-resistant (PA66HIRHSW) |
| Operation | electrical |
| PART DESCRIPTION | Strap_Yellow_ATS-PA66HIRHSW-YE |

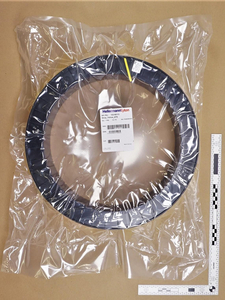

| Pack Cont. | 500m |
| Package Content packed in | reel |
| Product Family | Cable ties for Autotool System ATS |
| Product Group | Waste-free bundling up to Ø 100 mm |
| Releasable Closure (Yes/No) | No |
| Short Description | Two part consumables, consisting of closures and strap guarantees waste free bindings. |
| Tool suitable cable tie material | Plastic |
| Type | Strap_Yellow_ATS |
| Variant | on reel |
Download
|
|
|
| Country of Origin | DE |
| Customs Number | 39269097 |
| GTIN-13 / EAN | 4031026712284 |
| Packaging 1 - Height (m) | 0.09m |
| Packaging 1 - Length (m) | 0.64m |
| Packaging 1 - Type | bag |
| Packaging 1 - Volume (m³) | 0.03168m³ |
| Packaging 1 - Weight (kg) | 2.700142kg |
| Packaging 1 - Width (m) | 0.55m |
| Packaging 3 - Height (m) | 0.406m |
| Packaging 3 - Length (m) | 0.398m |
| Packaging 3 - Qty | 1 |
| Packaging 3 - Type | carton |
| Packaging 3 - Volume (m³) | 0.0599m³ |
| Packaging 3 - Weight (kg) | 11.430568kg |
| Packaging 3 - Width (m) | 0.371m |
| Packaging 4 - Height (m) | 0.956m |
| Packaging 4 - Length (m) | 1.2m |
| Packaging 4 - Qty | 12 |
| Packaging 4 - Type | pallet |
| Packaging 4 - Volume (m³) | 0.918m³ |
| Packaging 4 - Weight (kg) | 158.16kg |
| Packaging 4 - Width (m) | 0.8m |
