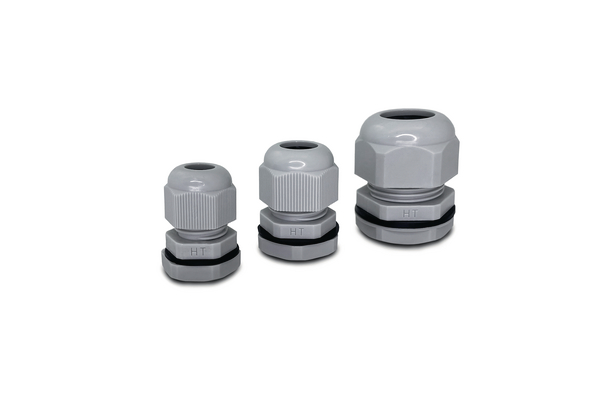

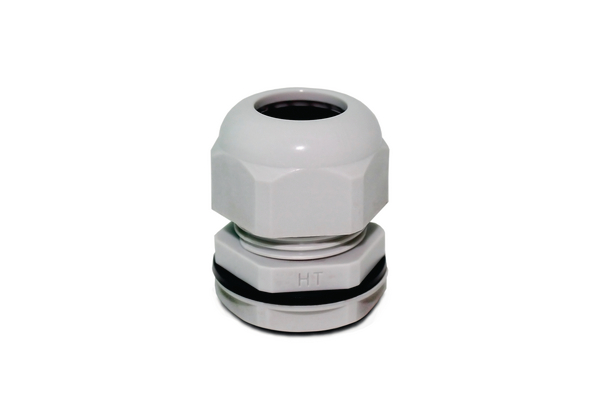

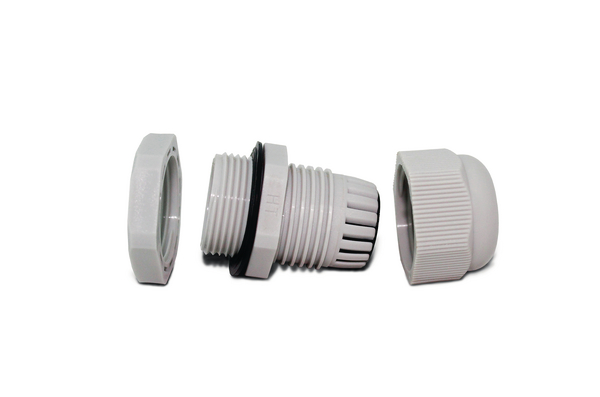

HTCG21PG-PA66-GY
Art.-Nr. 857-40897
| HTCG21PG-PA66-GY
|
Details
- Available in three thread types (BSP, PG and METRIC)
- Product certified according to IEC 62444
- High resistance to cable anchorage
- IP67 degree of protection (dustproof and waterproof)
- Easy application
Request your individual offer now
Request quote

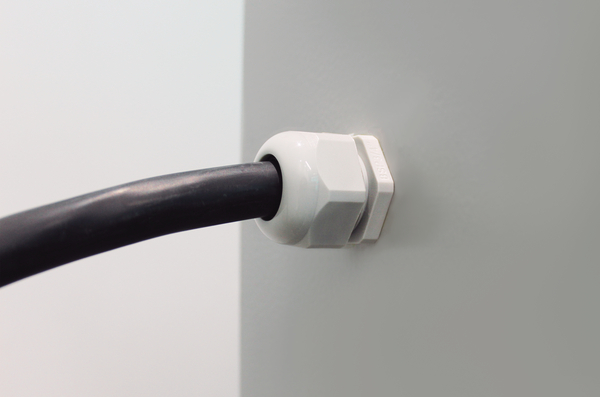

| Application | HellermannTyton Cable Gland is ideal for fixing and retaining cables in electrical equipment, in order to guarantee the safety and integrity of the connections positioned inside the enclosure. Available in three thread patterns, the product brings versatility to the most varied types of electrical equipment projects, contributing to a perfect cable protection system. The HellermannTyton cable gland line was developed according to the construction and performance requirements of cable glands for electrical installations, defined in the IEC 62444 standard. |
| Cable ∅ max | 18.0mm |
| Cable ∅ min | 13.0mm |
| Colour | Grey (GY) |
| Description | PG21 Cable Gland 13-18mm |
| Material | Polyamide 6.6 (PA66) |
| PART DESCRIPTION | HTCG21PG-PA66-GY |
| Pack Cont. | 25pcs. |
| Product Family | PG Thread |
| Type | HTCG21PG |
