Aluminium frame mount, W=7.9mm, T=4.0 - 4.8mm, natural, 100pcs.
Art.-Nr. 151-01612 | AFLM40-1-PA66-NA |  Details

Easy to install, remove and reposition with just a quarter-turn – no tools necessary.

    • AFLM can be easily attached to aluminum frames, which are indispensable for equipment units used at production sites.
    • AFLM offers exceptional versatility as it can fit into frames from the major aluminum frame manufacturers.
    • Can be attached to an aluminum frame in just one second. Simply rotate to lock in place.
    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    Application Our aluminium frame mounts are specially designed for aluminium construction profiles. Theirs installation and handling is very simple. At every favoured place on the profile just with a quarter turn the mount is firmly fixed. Also it can be easily loosened and repositioned at any time. The mounts are custom developed for several aluminium construction profiles.
    Colour Natural (NA)
    Fixation Method Profile rail
    For Pipe Size/Type Applicable Aluminum Frames: 40mm/45mm square type Panel Thickness: 5.5～6mm Slot Width:10mm
    For Ties T18 - T50
    Material Polyamide 6.6 (PA66)
    PART DESCRIPTION AFLM40-1-PA66-NA
    Pack Cont. 100pcs.
    Package Content packed in bag
    Product Family AFLM series
    Product Group Fixing mount for aluminum frame
    Short Description Mounts which are special designed for aluminum construction profiles

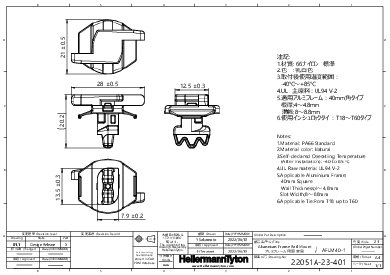

    Type AFLM40-1
    Height (H) 20.2mm
    Length (L) 28.0mm
    Length (L2) 13.5mm
    Panel Thickness max. 4.0 - 4.8mm
    Width (W) 21mm
    Width (W2) 7.9mm
    for Panel Thickness min - max 4 - 4.8 mm
    CE Certification No
    CSA Certified No
    Flammability UL 94 V2
    Operating Temperature -40 °C to +85 °C
    ROHS compliant Yes
    Specifications
    UV-Stabilised No
    Country of Origin JP
    GTIN-13 / EAN 4944387113914
    Packaging 1 - Height (m) 455m
    Packaging 1 - Length (m) 310m
    Packaging 1 - Qty 100
    Packaging 1 - Type bag
    Packaging 1 - Volume (m³) 29620500m³
    Packaging 1 - Weight (kg) 6.23kg
    Packaging 1 - Width (m) 210m
    ETIM 7.0 Key EC000449
    ETIM 8.0 Key EC000449
    ETIM 9.0 Key EC000449
    UNSPSC Key 39121717
