19/11/2024

Cable tie mount for screw fixation, Wmax=5.0mm, ∅5.2 mm, #10 (M5) Screw, black, 100pcs.
Art.-Nr. 151-31201 | CTAM2-PA66-BK |  Details

CTAM mounts for applications with limited space.

    • Suitable for applications with minimal space
    • Mounted before cable installation and in line with cable
    • CTAM has 4-way entry design for use in line or at 90° angle to cable run
    Package size
    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    Application Each of these products offers particular benefits, but all are designed for simple, yet robust, installation in a wide variety of applications - particularly used in telecoms equipment, switchgear and control cabinets.
    Colour Black (BK)
    Fixation Method Screw Mount
    For Ties T18 - T50
    Material Polyamide 6.6 (PA66)
    Mounting Screw Type #10 (M5) Screw
    PART DESCRIPTION CTAM2-PA66-BK
    Pack Cont. 100pcs.
    Package Content packed in bag
    Product Family CTAM-Series for applications where space is limited
    Product Group Screw fixing mounts

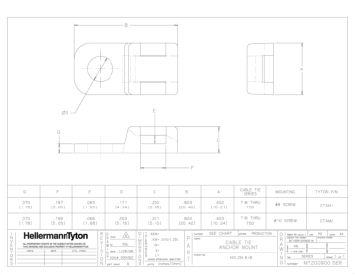

    Short Description Screw fixing mount 20.4x10.2 mm, black
    Type CTAM2
    Height (H) 5.10mm
    Height (H2) 1.27mm
    Length (L) 20.4mm
    Strap Width max. (G) 0.2"
    Strap Width max. (G) 5.0mm
    Width (W) 10.2mm
    for Hole ∅ (FH) 5.2 mm
    CE Certification Yes
    CSA Certified No
    Flammability UL 94 V2
    Operating Temperature -40 °C to +85 °C
    ROHS compliant Yes
    Specifications
    Specifications UL
    UL Listed (US and Canada) No
    UL Listed (US and Canada) No
    UL Recognized (US and Canada) Yes
    UL Recognized (US and Canada) Yes
    UL-File Number E64139
    UV-Stabilised No
    Country of Origin MX
    Customs Number 39269098
    GTIN-13 / EAN 4031026409948
    Packaging 1 - Qty 100
    Packaging 1 - Type bag
    Packaging 3 - Height (m) 0.20002499999999998m
    Packaging 3 - Length (m) 0.51117499999999995m
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.0318m³
    Packaging 3 - Width (m) 0.31115m
    ETIM 7.0 Key EC000449
    ETIM 8.0 Key EC000449
    ETIM 9.0 Key EC000449
    UNSPSC Key 39121717
