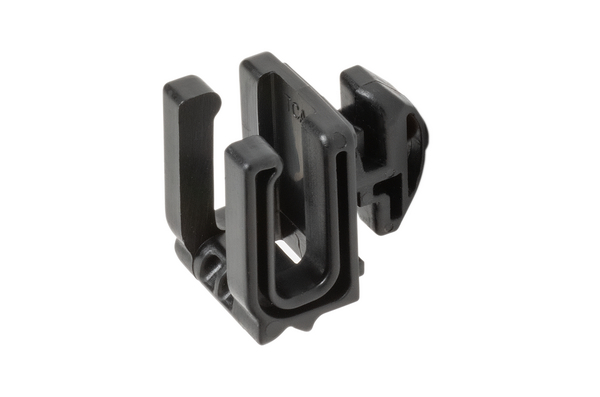

Aluminium frame mount, T=8.0mm, black, 100pcs.
Art.-Nr. 151-04159 | CTCM6CZF-PA66STHS-BK |  Details

    • maximum ease of use
    • No need to screw it in place
    • Can be used with 20, 30 or 40 mm square frames from the major aluminum frame manufacturers
    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    Application Our aluminium frame mounts are specially designed for aluminium construction profiles. Theirs installation and handling is very simple. At every favoured place on the profile just with a quarter turn the mount is firmly fixed. Also it can be easily loosened and repositioned at any time. The mounts are custom developed for several aluminium construction profiles.
    Colour Black (BK)
    Fixation Method 80/20 Frame
    For Ties T18-T50
    Material Polyamide 6.6, super tough, heat stabilized (PA66STHS)
    PART DESCRIPTION CTCM6CZF-PA66STHS-BK
    Pack Cont. 100pcs.
    Package Content packed in bag
    Product Group Fixing elements for aluminium frames
    Short Description Mounts which are special designed for aluminum construction profiles
    Strap Thickness max. 0.13"
    Strap Thickness max. 3.25mm
    Type CTCM6CZF

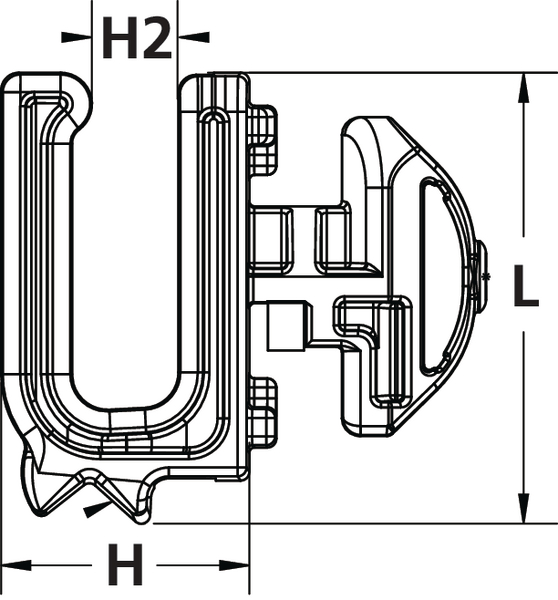

    Height (H) 14.0mm
    Height (H2) 6.0mm
    Length (L) 25.4mm
    Length (L2) 19.0mm
    Panel Thickness max. 8.0mm
    Strap Width max. (G) 0.36"
    Strap Width max. (G) 9.07mm

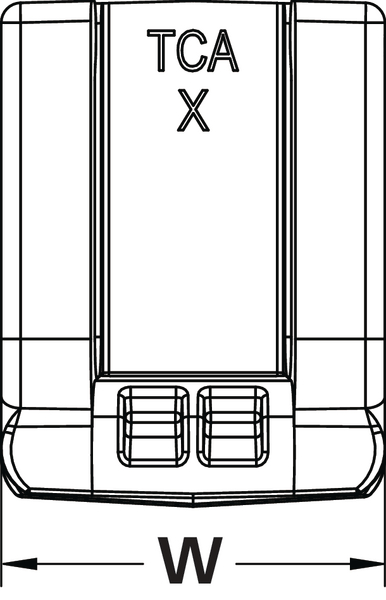

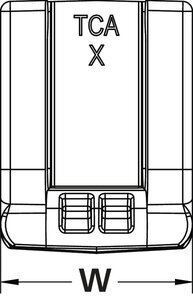

    Width (W) 19.3mm
    Width (W2) 8.0mm
    CE Certification No
    CSA Certified No
    Flammability UL 94 HB
    Halogen-free Yes
    Operating Temperature -40 °C to +105 °C
    ROHS compliant Yes
    Specifications
    UL Listed (US and Canada) No
    UL Listed (US and Canada) No
    UL Recognized (US and Canada) No
    UL Recognized (US and Canada) No
    UV-Stabilised No
    Country of Origin CN
    Customs Number 3926909988
    GTIN-13 / EAN 4031026739021
    ETIM 7.0 Key EC000449
    ETIM 8.0 Key EC000449
    ETIM 9.0 Key EC000449
    UNSPSC Key 39121717
    Self-Adhesive cable tie mounts Self-Adhesive cable tie mounts

    Self-Adhesive cable tie mounts

    HellermannTyton self-adhesive cable tie mounts are perfectly suited for cable fastening on round and angled surfaces. To save time, reduce part diversity and weight.
