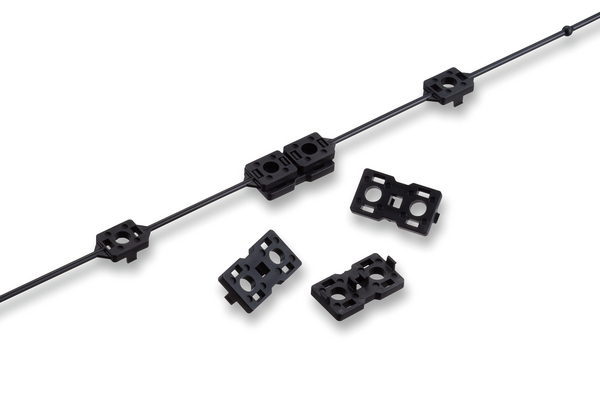

Cable tie mount, M3 Screw/M4 Screw, black, 100pcs.
Art.-Nr. 151-03198 | ESD135M-ATB-PPCOND-BK |  Details

    • One-piece bundling and fixing tie
    • Quick and easy installation
    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    Application The attachement for ESD135M. This attachment is for horizontal mating that eliminates problems such as twisting and interference.
    Colour Black (BK)
    Fixation Method Fixing hole
    For Ties ESD135M
    Material Conductive Polypropylene (PPCOND)
    Mounting Screw Type M3 Screw, M4 Screw
    PART DESCRIPTION ESD135M-ATB-PPCOND-BK
    Pack Cont. 100pcs.
    Package Content packed in bag
    Product Family ESD Series
    Product Group An attachment for ESD135M
    Type ESD135M-ATB
    Height (H) 5.35mm
    Length (L) 21mm
    Operating Temperature -40 °C to +85 °C
    ROHS compliant Yes
    Specifications
    Country of Origin JP
    GTIN-13 / EAN 4944387121728
    ETIM 7.0 Key EC000449
    ETIM 8.0 Key EC000449
    ETIM 9.0 Key EC000449
    UNSPSC Key 39121717
    Self-Adhesive cable tie mounts Self-Adhesive cable tie mounts

    Self-Adhesive cable tie mounts

    HellermannTyton self-adhesive cable tie mounts are perfectly suited for cable fastening on round and angled surfaces. To save time, reduce part diversity and weight.
