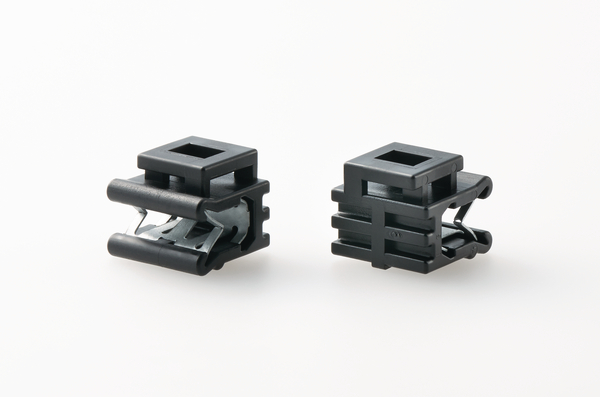

Cable tie mount for edge, Wmax=4.8mm, T=1.6-4.0mm, black, 100pcs.
Art.-Nr. 151-01590 | GLEC1640-PA11W-BK Details

  • Ideal for use where holes are not acceptable.
  • Made of PA11, same as GalvaLok cable ties, GalvaLok Edge-Clip has excellent salt corrosion resistance and insulation resistance.

Request your individual offer now

Application "For wiring construction around solar panels and outdoor galvanized steel plates. Measures to prevent snow melting agents and anti-freezing agents (calcium chloride) in mountainous areas and snowy areas. To counter salt damage at coastal areas."
Colour Black (BK)
Fixation Method Edge Clip
Material Polyamide 11, UV-resistant (PA11W)
PART DESCRIPTION GLEC1640-PA11W-BK
Pack Cont. 100pcs.
Package Content packed in bag
Product Family GalvaLok Edge-Clips
Product Group Fixing Elements for cables with Automatic Locking Feature
Type GLEC1640
Height (H) 13.3mm
Length (L) 15mm
Panel Thickness max. 1.6-4.0mm
Strap Width max. (G) 4.8mm
for Panel Thickness min - max 1.6 - 4 mm
Flammability UL 94 HB
Operating Temperature -40 °C to +105 °C
ROHS compliant Yes
Specifications
Country of Origin JP
GTIN-13 / EAN 4944387113761
ETIM 7.0 Key EC000449
ETIM 8.0 Key EC000449
ETIM 9.0 Key EC000449
UNSPSC Key 39121717
