21/11/2024

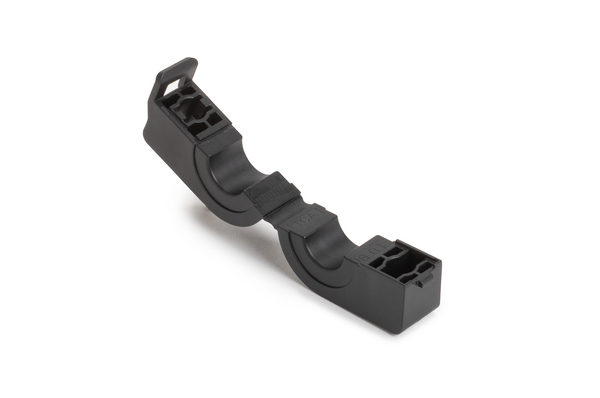

Cable clip, ∅6.0 mm, Dmin=12.5mm, Dmax=13.5mm
Art.-Nr. 151-03619 | HDHC13mm-PA46-BK |  Details

    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    Colour Black (BK)
    Material Polyamide 4.6 (PA46)
    PART DESCRIPTION HDHC13mm-PA46-BK
    Pack Cont. 500pcs.
    Package Content packed in carton
    Type HDHC13mm
    Bundle Diameter max (metric) 13.5mm
    Bundle ∅ 12.5-13.5mm
    Bundle ∅ min. 12.5mm
    Height (H) 30.6mm
    Length (L) 48.8mm
    Width (W) 15.0mm
    for Hole ∅ (FH) 6.0 mm
    CE Certification No
    CSA Certified No
    Operating Temperature -40 °C to +130 °C
    ROHS compliant Yes
    Specifications
    UL Listed (US and Canada) No
    UL Listed (US and Canada) No
    UL Recognized (US and Canada) No
    UL Recognized (US and Canada) No
    UV-Stabilised No
    Country of Origin US
    GTIN-13 / EAN 4031026681986
    Packaging 3 - Height (m) 0.212725m
    Packaging 3 - Length (m) 0.51435m
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.0347m³
    Packaging 3 - Width (m) 0.3175m
    ETIM 7.0 Key EC000449
    ETIM 8.0 Key EC000449
    ETIM 9.0 Key EC000449
    UNSPSC Key 39121717
    Self-Adhesive cable tie mounts Self-Adhesive cable tie mounts

    Self-Adhesive cable tie mounts

    HellermannTyton self-adhesive cable tie mounts are perfectly suited for cable fastening on round and angled surfaces. To save time, reduce part diversity and weight.
