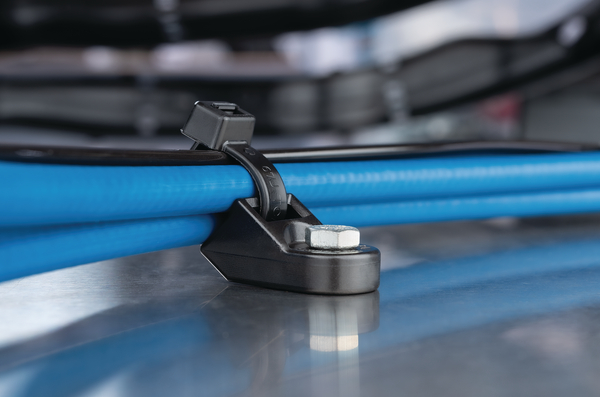

Cable tie mount for screw fixation, Wmax=12.7mm, ∅6.2 mm, ∅6.2 mm, #1/4" (M6) Screw, black, 500pcs.
Art.-Nr. 151-03095
| HDM250-PA666V0-BK
|
Details
- Design offers secure alignment to the bundle
- Possible replacement of cushion clamps and/or metal clamps
- Eliminates the needs for multiple sized fix diameter clamps
- For heavy duty cable ties up to 13.5 mm width
- Easy maintenance of bundle by simply changing the cable tie
Request your individual offer now
Request quote
More products in this product group:
| Application | These heavy duty mounts (HDM) have been primarily designed for use in the automotive and truck industry. Nowadays they can be found in a variety of applications requiring heavy duty mounting in areas like the railway, defence and/or agriculture industry. |
| Colour | Black (BK) |
| Fixation Method | Screw Mounting and Rivet |
| Key product features | vibration absorbing |
| Material | Polyamide 6.6/6, V0 (PA666V0) |
| Mounting Screw Type | #1/4" (M6) Screw |
| PART DESCRIPTION | HDM250-PA666V0-BK |
| Pack Cont. | 500pcs. |
| Package Content packed in | carton |
| Product Group | Harness clip for heavy duty applications, for screws or threaded bolts |
| Type | HDM250 |
Download
| CE Certification | No |
| CSA Certified | No |
| Flammability | UL 94 V0 |
| Halogen-free | Yes |
| Limited Fire Hazard | Yes |
| Max. Torque (kgf-cm) | 132.45kgf-cm |
| Max. Torque (lbf-In) | 9.58lbf-ft |
| Operating Temperature | -40 °C to +120 °C |
| ROHS compliant | Yes |
| Specifications |
|
| Specifications | ASTM 1354, ASTM E 162, ASTM E 662, NFPA130: 2017 |
| UL Listed (US and Canada) | No |
| UL Listed (US and Canada) | No |
| UL Recognized (US and Canada) | No |
| UL Recognized (US and Canada) | No |
| UV-Stabilised | No |
